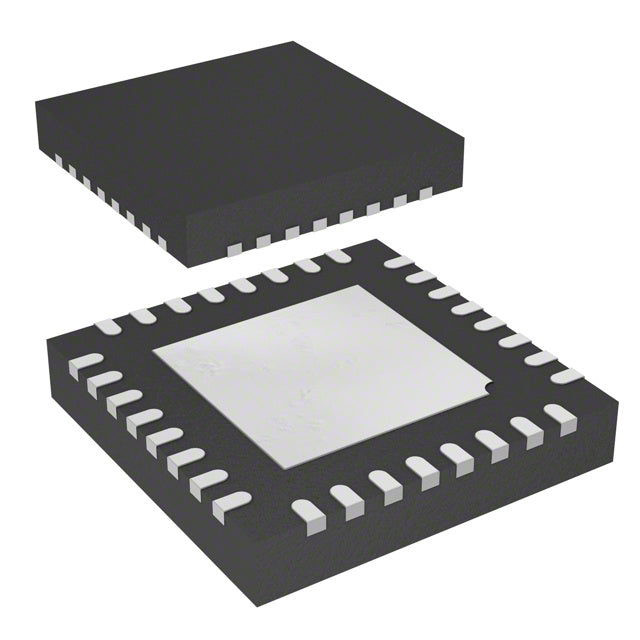

Microchip Technology AT90PWM316-16MUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.54 | $3.54 |
| 15+ | $3.43 | $51.45 |
| 25+ | $3.36 | $84.00 |
| 50+ | $3.17 | $158.50 |
| 100+ | $2.80 | $280.00 |
| N+ | $0.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® 90PWM Lighting |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 27 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 11x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (7x7) |
| Package / Case | 32-VQFN Exposed Pad |
| ROHS |  |
The AT90PWM316-16MUR is an 8-bit AVR microcontroller from Microchip, optimized for power control applications. It runs at 16MHz and includes 16KB flash, 1KB RAM, and advanced PWM peripherals. With an extended temperature range up to 105°C and 2.7V-5.5V operation, it is built for demanding power electronics.
- High-temperature operation: Rated up to 105°C for harsh environments.
- Advanced PWM: Dedicated power control peripherals reduce external circuitry.
- Wide voltage range: 2.7V-5.5V supports various power rails.
- Compact size: 32-VQFN package ideal for space-constrained designs.
Power Conversion
Dedicated PWM channels and high-temperature tolerance (up to 105°C) suit switch-mode power supplies.
Motor Control
Advanced PWM and ADC enable precise speed and torque control in BLDC and AC motors.
Lighting Ballasts
High-frequency PWM and robust operation support HID and LED drivers.
Industrial Heating
Wide voltage range and WDT ensure safe, reliable temperature regulation.
Automotive Lighting
High-temperature rating and PWM dimming make it ideal for headlamp and interior light control.
Solar Inverters
Fast ADC and PWM handle MPPT algorithms and inverter switching.
- Q: What is the maximum operating temperature?
- A: 105°C.
- Q: What is the core speed?
- A: 16MHz.
- Q: How much flash memory is available?
- A: 16KB.
- Q: What is the supply voltage range?
- A: 2.7V to 5.5V.
