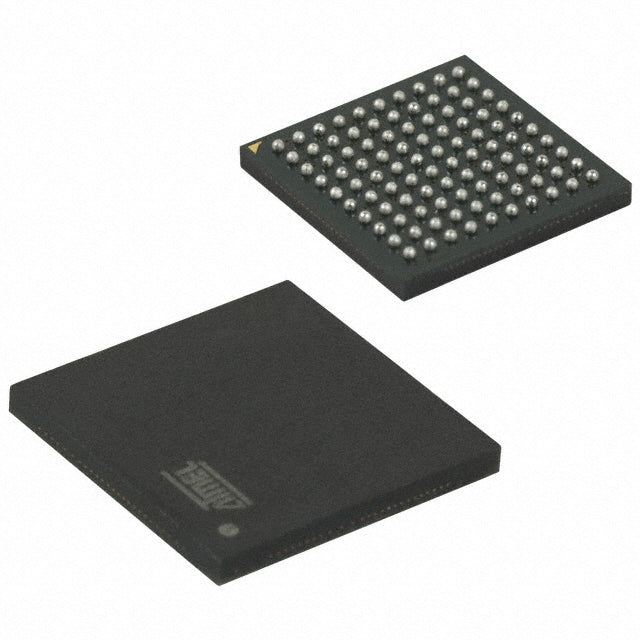

Atmel AT91SAM7X128C-CU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $45.52 | $45.52 |
| 15+ | $10.47 | $157.05 |
| 25+ | $10.24 | $256.00 |
| 50+ | $9.67 | $483.50 |
| 100+ | $8.54 | $854.00 |
| N+ | $1.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Atmel |
| Product Series | SAM7X |
| Packaging | Bulk | |
| Core Processor | ARM7® |
| Core Size | 16/32-Bit |
| Speed | 55MHz |
| Connectivity | CANbus, Ethernet, I2C, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 62 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (9x9) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The AT91SAM7X128C-CU from Atmel is a 32-bit ARM7TDMI microcontroller optimized for connectivity and control. It operates at 1.65V to 1.95V and runs at up to 55MHz. The device features 128KB of flash memory and 32KB of SRAM, providing ample space for applications. Integrated peripherals include DMA, PWM, brown-out detection, POR, and WDT. The 100-ball TFBGA package offers a compact footprint for space-limited designs. It is suitable for industrial, medical, and networking applications requiring reliable performance in temperatures from -40°C to 85°C.
- ARM7 core with 55MHz speed: Provides high computational throughput for complex control algorithms.
- DMA controller: Reduces CPU load by handling data transfers, improving system efficiency.
- Low 1.8V operation: Enables battery-powered designs with reduced power consumption.
- 128KB flash / 32KB RAM: Sufficient memory for protocol stacks and data buffering.
- Comprehensive protection features: Brown-out detect, POR, and WDT ensure robust operation in harsh environments.
Industrial Ethernet Gateways
The ARM7 core at 55MHz, combined with DMA, handles TCP/IP protocol stacks efficiently. The 128KB flash stores firmware and web pages.
Medical Monitoring Devices
Low 1.8V operation reduces power consumption for portable devices. The 32KB RAM buffers sensor data, while the WDT ensures continuous operation.
Building Automation Controllers
With 100 I/O pins in a TFBGA package, it interfaces with multiple sensors and actuators. The brown-out detector prevents erratic behavior during power dips.
Point-of-Sale Terminals
The DMA accelerates data transfer between UART and memory, improving transaction speed. The POR ensures reliable boot-up.
Robotics Control Boards
PWM outputs control servo motors, while the ARM7 core executes complex motion algorithms. The 1.65V minimum voltage allows operation from a single Li-ion cell.
Smart Grid Meters
The 128KB flash stores calibration and tariff data. The brown-out reset protects against power line transients, and the -40°C to 85°C range suits outdoor installations.
- Q: What core does the AT91SAM7X128C-CU use?
- A: It uses the ARM7TDMI processor core running at up to 55MHz.
- Q: What is the supply voltage?
- A: It operates from 1.65V to 1.95V, typically 1.8V.
- Q: How much flash and RAM does it have?
- A: It has 128KB of flash and 32KB of SRAM.
- Q: What package is it available in?
- A: It comes in a 100-ball TFBGA package.
- Q: Does it have DMA support?
- A: Yes, it includes a DMA controller for efficient data transfer.
