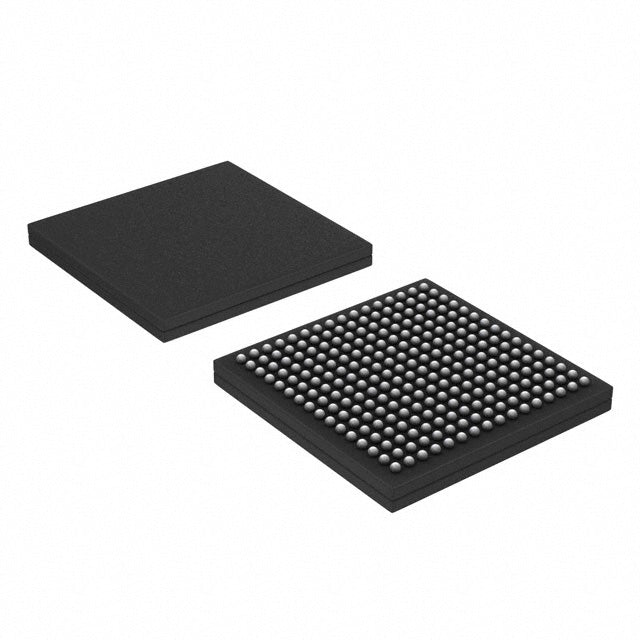

Microchip Technology AT94S05AL-25DGI
Regular price
$94,999.99
Regular price
$99,999.99
Sale price
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | FPSLIC® |
| Packaging | |
| Core Type | 8-Bit AVR |
| Speed | 25 MHz |
| Interface | I2C, UART |
| Program SRAM Bytes | 4K-16K |
| FPGA SRAM | 2kb |
| EEPROM Size | 256K x 8 |
| Data SRAM Bytes | 4K ~ 16K |
| FPGA Core Cells | 256 |
| FPGA Gates | 5K |
| FPGA Registers | 436 |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 256-LBGA, CABGA |
| Supplier Device Package | 256-CABGA (17x17) |
AT94S05AL-25DGI - FPSLIC® Integrated Circuit
The AT94S05AL-25DGI from Microchip Technology combines an 8-bit AVR microcontroller core with FPGA logic in a single chip, offering exceptional flexibility for embedded system designs requiring both programmable logic and processing power.
Key Features
- High-Performance 8-Bit AVR Core: 25 MHz operating speed for fast processing
- Flexible FPGA Logic: 5K gates with 436 registers and 256 core cells
- Versatile Interfaces: I2C and UART communication protocols
- Generous Memory: 4K-16K program SRAM, 2kb FPGA SRAM, 256K x 8 EEPROM
- Industrial Temperature Range: -40°C to 85°C operation
- Compact Package: 256-CABGA (17x17mm) for space-efficient designs
Applications
Ideal for industrial control systems, embedded applications requiring custom logic, motor control, sensor interfaces, and mixed-signal processing applications where both microcontroller functionality and programmable logic are needed.
Why Choose AT94S05AL-25DGI?
This FPSLIC device delivers the best of both worlds - the ease of microcontroller programming with the flexibility of FPGA logic. Perfect for engineers who need to implement custom hardware acceleration alongside standard firmware, all in a single, cost-effective package.
AT94S05AL-25DGI.pdf
×
