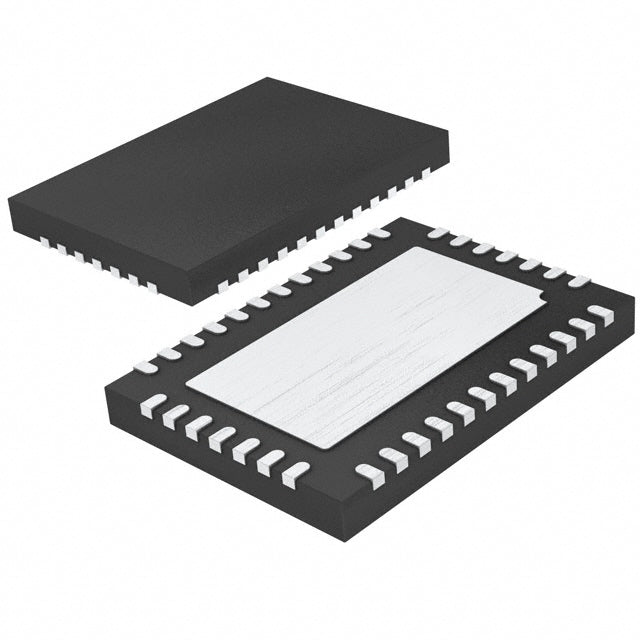

Microchip Technology ATA6617C-P3QW-1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.04 | $3.04 |
| 15+ | $2.94 | $44.10 |
| 25+ | $2.88 | $72.00 |
| 50+ | $2.72 | $136.00 |
| 100+ | $2.40 | $240.00 |
| N+ | $0.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATA66 LIN-SBC, Functional Safety (FuSa) |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART, USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 16 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 11x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TC) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 38-QFN (5x7) |
| Package / Case | 38-VFQFN Exposed Pad |
| ROHS |  |
The ATA6617C-P3QW-1 from Microchip Technology is an 8-bit AVR microcontroller designed for demanding applications. It operates at up to 16MHz with a supply voltage of 2.7V to 5.5V. The device provides 16KB of flash memory and 512 bytes of RAM. It integrates Brown-out Detect/Reset, POR, PWM, Temperature Sensor, and WDT. Packaged in a 38-VFQFN with exposed pad, it operates from -40°C to 125°C, making it suitable for automotive and industrial environments.
- High-temperature rating (125°C) enables use in engine compartments and industrial ovens.
- Integrated temperature sensor reduces external component count for thermal monitoring.
- 16MHz AVR core provides fast interrupt response for real-time control.
- Exposed pad package improves heat dissipation for reliable operation under load.
Automotive LIN Node Controllers
The AVR core at 16MHz and 125°C rating make it ideal for LIN bus slave nodes in body control modules.
Engine Cooling Fan Control
PWM outputs and temperature sensor enable closed-loop fan speed control based on coolant temperature.
Industrial Process Sensors
With 16KB flash and WDT, it can handle sensor calibration and data logging in high-temperature industrial ovens.
Power Tool Battery Management
The 2.7V-5.5V range and brown-out detection protect against undervoltage in cordless drill battery packs.
HVAC Compressor Drives
PWM and temperature sensing support variable speed compressor control in rooftop units.
Off-Road Vehicle Displays
The rugged temperature range and AVR performance drive instrument clusters in ATVs and tractors.
- Q: What is the core processor of the ATA6617C-P3QW-1?
- A: It uses the AVR core running at up to 16MHz, offering high performance for 8-bit applications.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TC), making it suitable for automotive and high-temperature environments.
- Q: How much flash and RAM does it have?
- A: It includes 16KB of flash (16K x 8) and 512 bytes of RAM (512 x 8).
- Q: What package is available?
- A: It comes in a 38-VFQFN package with an exposed pad for improved thermal performance.
- Q: What integrated features does it offer?
- A: It features Brown-out Detect/Reset, POR, PWM, Temperature Sensor, and WDT for robust system monitoring.
