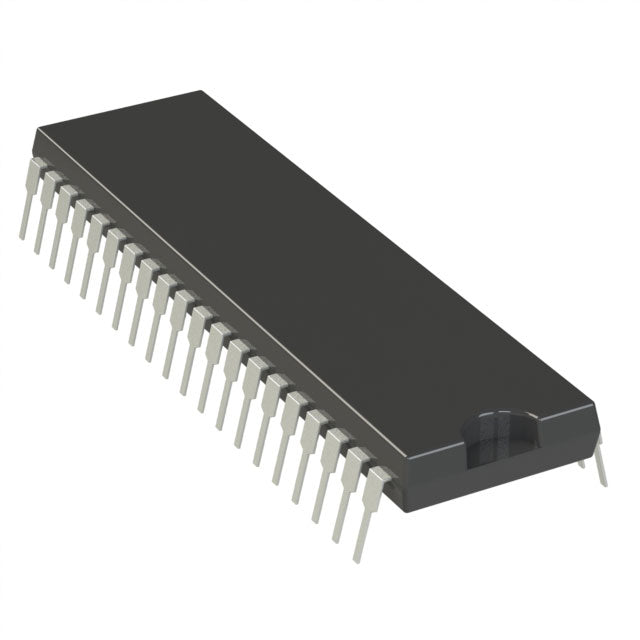

Atmel ATMEGA164PV-10PQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.52 | $21.52 |
| 15+ | $4.02 | $60.30 |
| 25+ | $3.93 | $98.25 |
| 50+ | $3.71 | $185.50 |
| 100+ | $3.28 | $328.00 |
| N+ | $0.66 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Atmel |
| Product Series | AVR® ATmega |
| Packaging | Bulk | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 32 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 40-PDIP |
| Package / Case | 40-DIP (0.600", 15.24mm) |
| ROHS |  |
The Atmel ATMEGA164PV-10PQ is a versatile 8-bit AVR microcontroller in a 40-pin DIP package. It operates at speeds up to 10MHz with a supply voltage from 1.8V to 5.5V, making it suitable for low-power and battery-operated designs. It features 16KB of flash memory and 1K x 8 RAM. The device includes brown-out detection, power-on reset, PWM, and watchdog timer for robust operation. Its wide temperature range (-40°C to 85°C) supports industrial applications.
- Ultra-low power consumption: AVR architecture with 1.8V operation extends battery life in portable devices.
- Robust protection features: Brown-out detect and POR prevent data corruption during power fluctuations.
- DIP package for prototyping: Easy to solder and replace, ideal for development and small batches.
- Wide temperature range: Reliable in harsh environments from -40°C to 85°C.
Industrial Sensor Nodes
The wide voltage range (1.8V-5.5V) and low-power AVR core allow battery-powered sensors to operate for years, with 16KB flash for calibration data.
Automotive Control Units
With -40°C to 85°C rating and brown-out detection, it is reliable for automotive body electronics like window lift controllers.
Medical Monitoring Devices
The 10MHz speed and 1K RAM support real-time processing of vital signs, while the DIP package is easy to prototype.
Smart Agriculture Systems
Multiple PWM channels can drive irrigation valves, and the WDT ensures the system recovers from transient faults in field conditions.
Educational Robotics
The 40-pin DIP package is breadboard-friendly, making it ideal for teaching embedded systems with AVR.
Power Tool Controllers
Brown-out reset prevents erratic behavior during battery voltage drops, ensuring safe operation of drills and saws.
- Q: What is the core architecture of the ATMEGA164PV-10PQ?
- A: It uses the AVR core, a high-performance 8-bit RISC architecture.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C, suitable for industrial environments.
- Q: Does it have brown-out detection?
- A: Yes, it includes Brown-out Detect/Reset, POR, PWM, and WDT.
- Q: What package is this device?
- A: It comes in a 40-pin DIP (0.600" width) package.
- Q: What is the maximum speed?
- A: It runs at 10MHz with a supply voltage from 1.8V to 5.5V.
