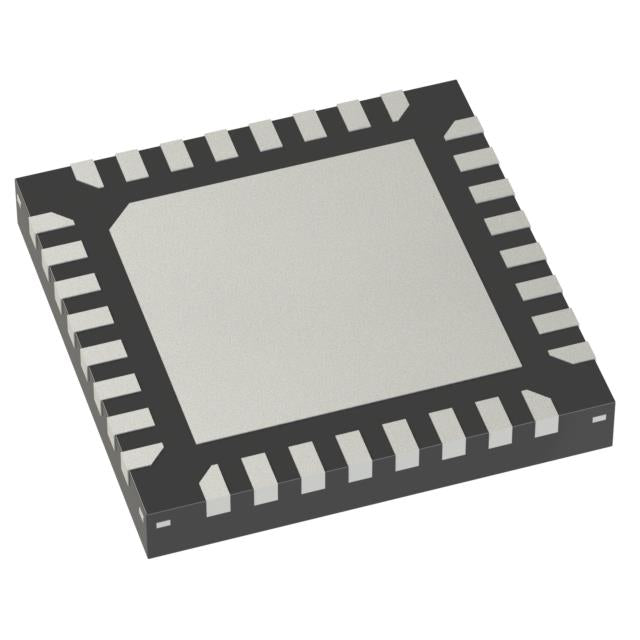

Microchip Technology ATMEGA168-15MD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATmega |
| Packaging | | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-VQFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATMEGA168-15MD is an 8-bit AVR microcontroller with 16 KB Flash and 1 KB RAM. It operates at 16 MHz with a supply voltage of 2.7V to 5.5V. This device includes brown-out detection, POR, PWM, and WDT. Packaged in a 32-VFQFN with exposed pad, it operates from -40°C to +150°C, making it ideal for extreme high-temperature applications.
- Extreme Temperature Rating: -40°C to +150°C enables deployment in environments where standard MCUs fail.
- Efficient AVR Core: Single-cycle instruction execution maximizes throughput at 16MHz.
- Wide Voltage Range: 2.7V to 5.5V supports both battery and regulated supply designs.
- Compact Thermal Package: 32-VFQFN with exposed pad aids heat dissipation in high-temperature settings.
High-Temperature Downhole Sensors
Rated for 150°C, this MCU can operate in oil and gas exploration equipment where standard electronics fail. The 16MHz AVR core processes sensor data reliably.
Automotive Engine Bay Modules
With a 150°C rating and 5.5V supply, it can be placed near engines or exhaust systems. The brown-out detector ensures reset during cranking.
Industrial Oven Controllers
The high-temperature rating allows direct mounting inside industrial ovens or near heating elements. The PWM module controls heating elements with precision.
LED Lighting Drivers
The 32-VFQFN package and PWM outputs make it suitable for compact LED drivers. The POR and WDT enhance reliability in constant-operation fixtures.
Avionics Sensors
While not certified, the 150°C rating supports high-temperature sensor interfaces in non-critical avionics applications. The small package saves weight.
Power Electronics
For converters operating in hot environments, this MCU can manage protection and control loops. The brown-out detector prevents erratic behavior during power dips.
- Q: What core does this MCU use?
- A: It uses the AVR 8-bit RISC core, known for its efficient instruction execution (most instructions in one clock cycle).
- Q: What is the maximum clock speed?
- A: The device operates at up to 16 MHz, providing a good balance of speed and power consumption.
- Q: What is the program memory size?
- A: It has 16 KB of Flash memory (8K x 16 bits), suitable for small to medium applications.
- Q: What is the operating temperature range?
- A: This variant is rated for -40°C to +150°C, making it suitable for extreme high-temperature environments.
- Q: What package is available?
- A: It comes in a 32-pin VFQFN package with an exposed pad for thermal management.
