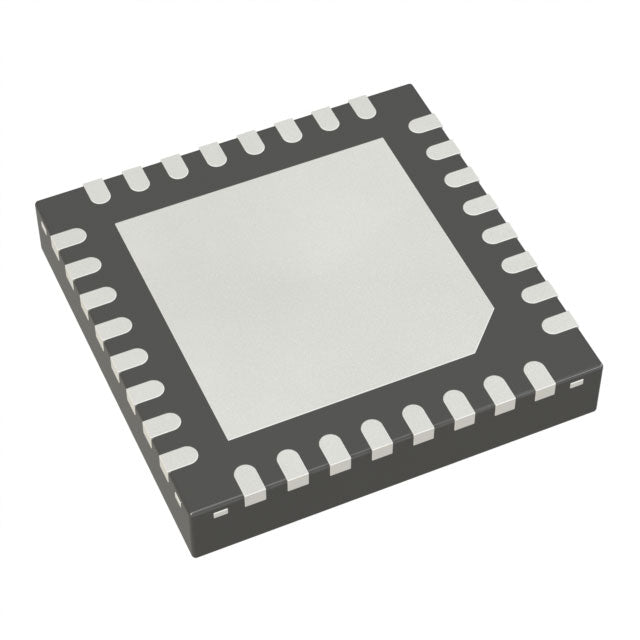

Microchip Technology ATMEGA168PA-15MZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATmega |
| Packaging | | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATMEGA168PA-15MZ is an 8-bit AVR microcontroller with 16KB flash memory and 1KB SRAM, operating at up to 16MHz. It supports a wide voltage range from 1.8V to 5.5V, making it flexible for various power supplies. Housed in a compact 32-VFQFN package, it includes PWM, brown-out detection, and a watchdog timer for reliable embedded control in industrial and automotive environments.
- Wide voltage range (1.8V-5.5V) – enables direct battery operation without external regulators.
- High-temperature tolerance (-40°C to 125°C) – suitable for automotive and industrial harsh environments.
- Compact 32-VFQFN package – saves PCB space and improves thermal dissipation.
- Integrated PWM and watchdog – reduces external component count and enhances system reliability.
Industrial Sensor Nodes
With a 1.8V to 5.5V supply and 16MHz AVR core, this MCU can interface with analog sensors and execute control loops in factory automation, ensuring reliable data acquisition.
Battery-Powered IoT Devices
The low-voltage operation and power-saving modes of the ATMEGA168PA-15MZ extend battery life in wireless environmental monitors and smart home sensors.
Automotive Body Electronics
Rated for -40°C to 125°C, it handles harsh under-hood conditions for window lift or lighting control modules, with PWM for motor speed regulation.
Portable Medical Instruments
Its small 32-VFQFN package and 16KB flash allow compact designs for glucose meters or pulse oximeters, with watchdog timer for fail-safe operation.
Motor Control for Drones
The PWM outputs and 16MHz speed enable precise ESC (electronic speed controller) signals for brushless DC motors in small UAVs.
Smart Agriculture Probes
With 1K x 8 RAM and low-power features, it processes soil moisture and temperature data in remote field sensors, transmitting via external RF modules.
- Q: What is the operating voltage range of the ATMEGA168PA-15MZ?
- A: It operates from 1.8V to 5.5V, making it suitable for battery-powered and low-voltage applications.
- Q: What is the maximum clock speed?
- A: The maximum speed is 16MHz, providing a balanced performance for general-purpose embedded control.
- Q: What package is this device available in?
- A: It comes in a 32-VFQFN exposed pad package, ideal for compact PCB designs with improved thermal performance.
- Q: Does it include analog or timer peripherals?
- A: Yes, it features PWM, brown-out detection, power-on reset, and a watchdog timer for robust operation.
