Microchip Technology ATMEGA324PV-10MUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.99 | $5.99 |
| 15+ | $5.80 | $87.00 |
| 25+ | $5.67 | $141.75 |
| 50+ | $5.36 | $268.00 |
| 100+ | $4.73 | $473.00 |
| N+ | $0.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATmega |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 32 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

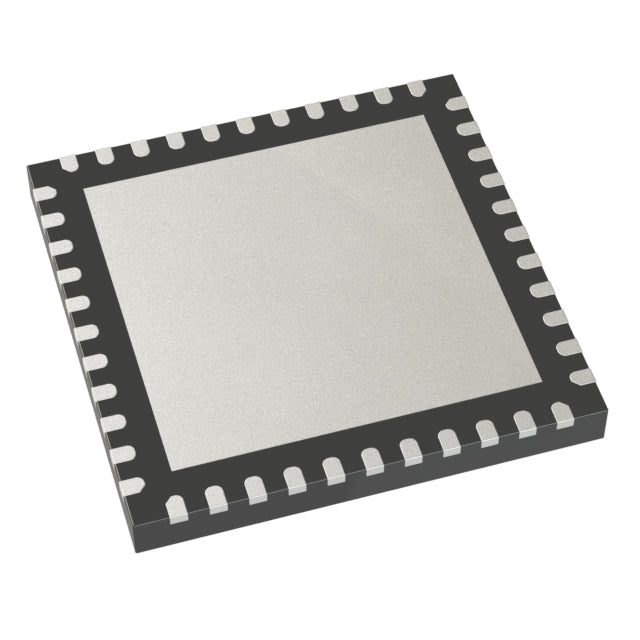

| Supplier Device Package | 44-VQFN (7x7) |
| Package / Case | 44-VFQFN Exposed Pad |
| ROHS |  |
The ATMEGA324PV is an 8-bit AVR microcontroller from Microchip, operating at up to 10MHz. It features 32KB flash and 2K RAM, with a 1.8V to 5.5V supply range. In a 44-VFQFN package, it includes brown-out detection, POR, PWM and WDT, making it a reliable choice for low-power embedded applications.
- Ultra-low voltage operation (1.8V) enables direct coin-cell battery use.
- AVR architecture is well-documented with extensive community and official support.
- Integrated brown-out reset prevents data corruption during voltage dips.
- Compact 44-VFQFN package saves PCB space for portable devices.
Battery-Powered Data Loggers
1.8V operation and low-power AVR core extend battery life in environmental sensors.
Consumer Electronics Remote Controls
PWM and WDT support IR signal generation and reliable wake-up from sleep.
Industrial Sensor Nodes
Brown-out detection ensures stable operation in noisy factory environments.
Automotive Aftermarket Modules
5.5V tolerance and 85°C rating handle car battery fluctuations.
Educational Robotics Kits
Simple AVR architecture and 32KB flash make it ideal for teaching embedded systems.
Smart Home Thermostats
Low power consumption and multiple I/O pins manage temperature sensors and relay controls.
- Q: What is the core architecture?
- A: 8-bit AVR core running at up to 10MHz.
- Q: What is the voltage range?
- A: 1.8V to 5.5V, suitable for low-power designs.
- Q: How much program memory does it have?
- A: 32KB flash (16K x 16) and 2K x 8 RAM.
- Q: What package is available?
- A: 44-VFQFN exposed pad package.
