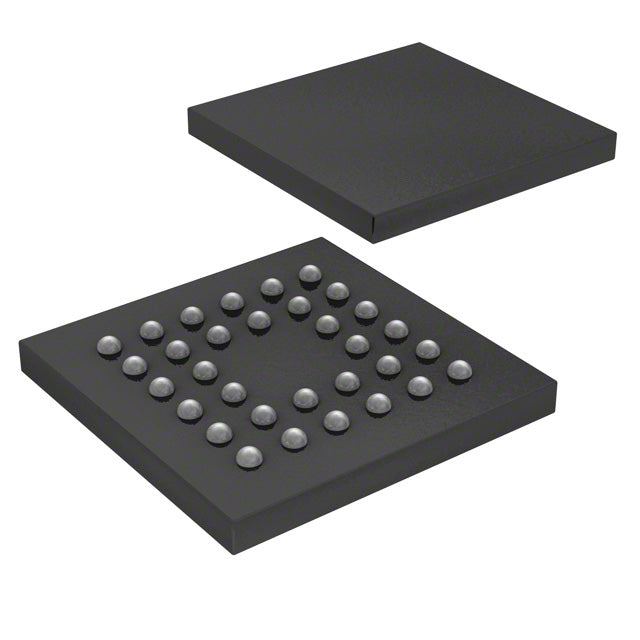

Microchip Technology ATMEGA48PA-CCU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATmega |
| Packaging | | Tray |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 4KB (2K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-UFBGA (4x4) |
| Package / Case | 32-UFBGA |
| ROHS |  |
The Microchip ATMEGA48PA-CCU is a compact 8-bit AVR microcontroller in a 32-UFBGA package. It operates at up to 20MHz with a supply range of 1.8V to 5.5V. Featuring 4KB flash and 512B SRAM, it is designed for cost-sensitive and space-limited applications. Its small footprint and robust peripheral set make it suitable for consumer, industrial, and IoT devices.
- Ultra-compact 32-UFBGA package enables miniaturized product designs.
- 20MHz AVR core provides high performance for its size.
- 1.8V-5.5V supply flexibility supports various power sources.
- Low pin count simplifies routing and reduces PCB layers.
Compact IoT Nodes
The 32-UFBGA package saves PCB space, ideal for space-constrained wireless sensor modules.
Motor Control for Drones
20MHz speed and PWM outputs enable precise ESC control for small unmanned vehicles.
Smart Lighting
1.8V operation and PWM channels support efficient LED dimming in battery-powered fixtures.
Consumer Appliances
4KB flash is sufficient for simple control logic in blenders, fans, or coffee makers.
Security Systems
POR and WDT ensure reliable operation in alarm panels or access control keypads.
Analog Sensor Interfaces
With 512B SRAM, it can handle basic signal conditioning and threshold detection for analog sensors.
- Q: What is the maximum speed?
- A: It operates up to 20MHz.
- Q: What is the supply voltage range?
- A: It runs from 1.8V to 5.5V.
- Q: How much flash memory does it have?
- A: It has 4KB of flash program memory.
- Q: What package is it available in?
- A: It comes in a 32-UFBGA package.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
