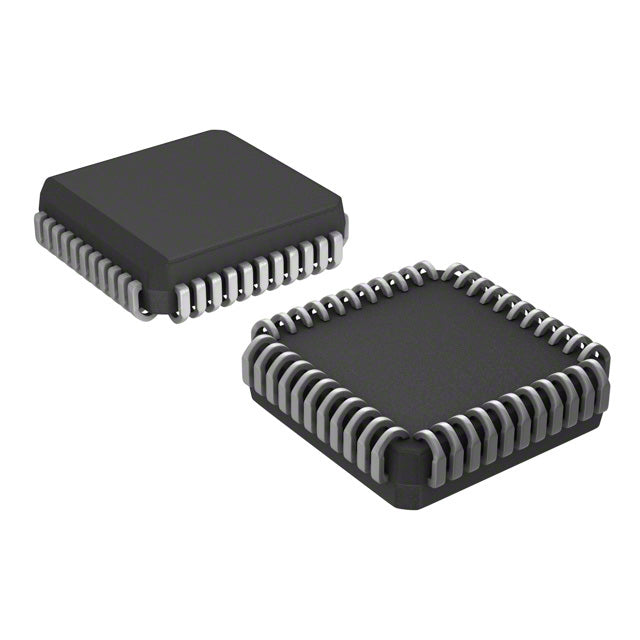

Microchip Technology ATMEGA8515-16JU
Regular price
$3.36
Regular price
$3.54
Sale price
$3.36
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.36 | $3.36 |
| 15+ | $3.26 | $48.90 |
| 25+ | $3.19 | $79.75 |
| 50+ | $3.01 | $150.50 |
| 100+ | $2.66 | $266.00 |
| N+ | $0.53 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATmega |
| Packaging | Tube | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | EBI/EMI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 8KB (4K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-PLCC (16.6x16.6) |
| Package / Case | 44-LCC (J-Lead) |
| ROHS |  |
The ATMEGA8515-16JU from Microchip Technology is an 8-bit AVR microcontroller in a 44-LCC package. It operates at 4.5V-5.5V with a 16MHz clock, featuring 8KB flash and 512 bytes RAM. Integrated brown-out detection, POR, PWM, and WDT make it a robust choice for 5V embedded control.
- 5V operation: Directly interfaces with legacy TTL logic.
- 16MHz speed: Adequate for mid-range control tasks.
- J-Lead package: Secure mounting for vibration-prone environments.
- Proven AVR architecture: Extensive community and tool support.
Legacy System Replacements
Drop-in upgrade for older 8-bit designs needing 5V operation.
Educational Prototyping
Simple AVR architecture with 16MHz speed for learning embedded systems.
Industrial Timers
PWM and WDT provide reliable timing in control panels.
Automotive Sensors
5V compatibility with existing sensor interfaces.
Consumer Appliances
Cost-effective control for washing machines or microwaves.
Data Acquisition
8KB flash stores calibration tables for analog front-ends.
- Q: What is the core type?
- A: 8-bit AVR core running at up to 16MHz.
- Q: What is the supply voltage?
- A: 4.5V to 5.5V, standard 5V logic.
- Q: What package is this?
- A: 44-LCC (J-Lead) for surface-mount assembly.
- Q: How much program memory?
- A: 8KB flash (4K x 16 words).
Base Product Number ：
ATMEGA8515
ATMEGA8515-16JU.pdf
- Q: What is the core type?
- A: 8-bit AVR core running at up to 16MHz.
- Q: What is the supply voltage?
- A: 4.5V to 5.5V, standard 5V logic.
- Q: What package is this?
- A: 44-LCC (J-Lead) for surface-mount assembly.
- Q: How much program memory?
- A: 8KB flash (4K x 16 words).
×
