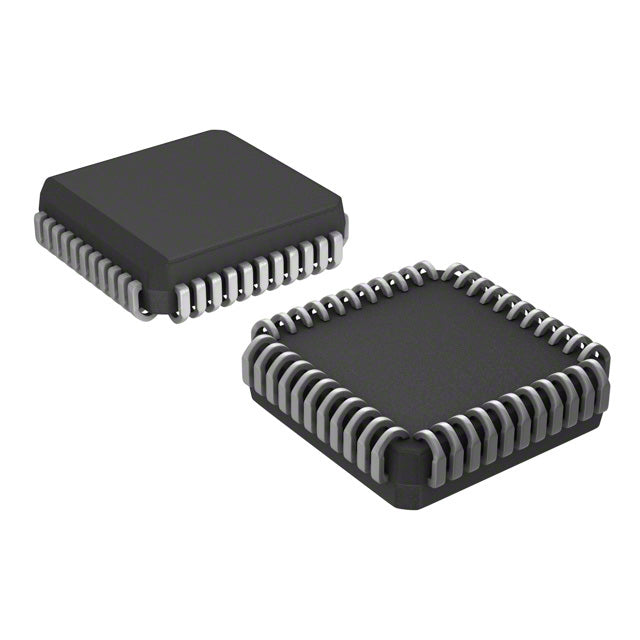

Microchip Technology ATMEGA8515L-8JUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.51 | $3.51 |
| 15+ | $3.39 | $50.85 |
| 25+ | $3.32 | $83.00 |
| 50+ | $3.14 | $157.00 |
| 100+ | $2.77 | $277.00 |
| N+ | $0.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATmega |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 8MHz |
| Connectivity | EBI/EMI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 8KB (4K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-PLCC (16.6x16.6) |
| Package / Case | 44-LCC (J-Lead) |
| ROHS |  |
The Microchip ATMEGA8515L-8JUR is a low-voltage 8-bit AVR microcontroller in a 44-lead LCC package. It operates from 2.7V to 5.5V at speeds up to 8MHz, featuring 8KB of flash memory and 512 bytes of SRAM. Integrated brown-out detection, power-on reset, PWM, and watchdog timer ensure dependable operation in power-sensitive applications.
- Wide Voltage Range: 2.7V-5.5V supports both battery and 5V logic systems.
- Low Power Consumption: Optimized for battery life with multiple sleep modes.
- Reliable Reset Circuitry: POR and BOD prevent erratic behavior during power transitions.
- Compact J-Lead Package: Ideal for space-constrained designs.
Battery-Powered Data Loggers
The 2.7V minimum supply allows direct operation from two AA batteries, while the 8MHz clock provides sufficient throughput for periodic sensor sampling.
Portable Medical Monitors
Low-voltage operation and integrated POR ensure safe startup in glucose meters or pulse oximeters.
Wireless Sensor Nodes
With 512B SRAM and low-power sleep modes, it can handle simple RF protocol stacks for 433MHz or 915MHz transceivers.
Consumer Appliances
Its 5V tolerance and PWM outputs make it suitable for controlling small fans or pumps in coffee machines or air purifiers.
Educational Kits
The 44-pin LCC package is easy to solder on adapter boards for university microcontroller labs.
Remote Keyless Entry
Low-voltage operation and WDT make it reliable for automotive RKE receivers.
- Q: What is the supply voltage range for the ATMEGA8515L-8JUR?
- A: It operates from 2.7V to 5.5V, allowing battery-powered designs.
- Q: What is the maximum speed?
- A: The maximum clock frequency is 8MHz.
- Q: How much flash memory does it have?
- A: It has 8KB of in-system programmable flash (4K x 16 bits).
- Q: What is the package type?
- A: It is available in a 44-lead LCC (J-Lead) package.
