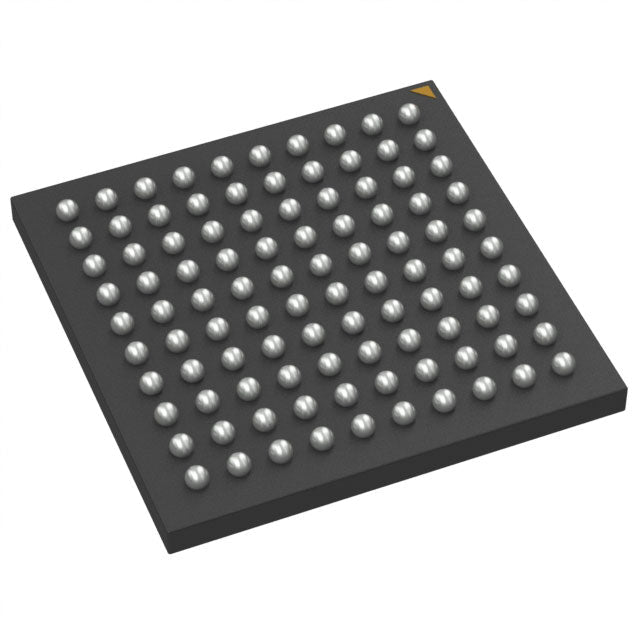

Microchip Technology ATSAM3SD8CA-CUR
Regular price
$9.44
Regular price
$9.94
Sale price
$9.44
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.44 | $9.44 |
| 15+ | $9.14 | $137.10 |
| 25+ | $8.95 | $223.75 |
| 50+ | $8.45 | $422.50 |
| 100+ | $7.46 | $746.00 |
| N+ | $1.49 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM3S |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 15x10/12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (9x9) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The ATSAM3SD8CA is a 32-bit ARM Cortex-M3 MCU from Microchip, running at 64MHz with 512KB flash and 64KB RAM. It operates from 1.62V to 3.6V and includes DMA, I2S, PWM, and WDT. The 100-TFBGA package is ideal for space-constrained embedded designs.
- High-performance Cortex-M3 core at 64MHz for advanced algorithms.
- Large 512KB flash for complex application code.
- Ultra-low voltage operation down to 1.62V for battery devices.
- Integrated DMA and I2S for efficient data streaming.
IoT Edge Nodes
64MHz Cortex-M3 with 512KB flash runs MQTT stacks and sensor processing efficiently.
Portable Medical Devices
1.62V low-voltage operation extends battery life in wearable monitors.
Audio Processing
I2S interface and DMA enable high-fidelity audio streaming with minimal CPU load.
Industrial Automation
Robust PWM and WDT support precise motor control in factory equipment.
Smart Meters
Low power modes and wide voltage range suit utility metering applications.
Consumer Robotics
64KB RAM handles complex kinematics and sensor fusion algorithms.
- Q: What core does it use?
- A: ARM Cortex-M3.
- Q: What is the max clock speed?
- A: 64MHz.
- Q: How much flash and RAM?
- A: 512KB flash and 64KB RAM.
- Q: What package is offered?
- A: 100-TFBGA.
- Q: Does it support DMA and I2S?
- A: Yes, both are integrated.
Base Product Number ：
ATSAM3SD8CA
ATSAM3SD8CA-CUR.pdf
