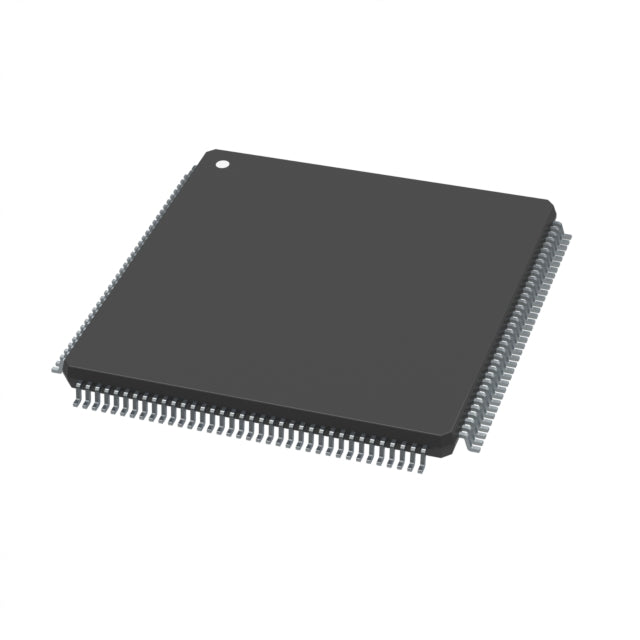

Microchip Technology ATSAM4E16EA-ANR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.98 | $11.98 |
| 15+ | $11.60 | $174.00 |
| 25+ | $11.35 | $283.75 |
| 50+ | $10.72 | $536.00 |
| 100+ | $9.46 | $946.00 |
| N+ | $1.89 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4E |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 117 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The Microchip ATSAM4E16EA-ANR is a high-reliability ARM Cortex-M4 microcontroller designed for demanding industrial and automotive applications. Operating at 120MHz with 1MB flash and 128KB RAM, it provides ample resources for complex control algorithms. Its 1.62V to 3.6V supply range and 144-LQFP package support robust system designs. The device is rated for -40°C to 105°C, ensuring performance in extreme environments.
- Extended Temperature Range: -40°C to 105°C operation for harsh environments.
- Large Memory: 1MB flash and 128KB RAM for complex applications.
- FPU for Math: Cortex-M4 with FPU accelerates floating-point calculations.
- High-Speed Operation: 120MHz core for real-time processing.
Automotive Body Control Modules
The 105°C rating and robust peripherals make it suitable for controlling lighting, windows, and locks in vehicles.
Industrial Automation PLCs
With 1MB flash and 120MHz speed, it can run complex ladder logic and communication protocols in programmable logic controllers.
Smart Grid Infrastructure
Its wide temperature range and DMA capabilities support reliable data acquisition in power distribution monitoring.
Medical Device Controllers
The Cortex-M4 FPU accelerates signal processing for infusion pumps and patient monitors.
Building Management Systems
It can manage HVAC controls and lighting systems with its multiple PWM and timer channels.
Test and Measurement Equipment
High-speed ADC interfaces and 128KB RAM enable precise data logging in portable oscilloscopes.
- Q: What is the core processor of the ATSAM4E16EA-ANR?
- A: It uses the ARM Cortex-M4 core with FPU, running at 120MHz.
- Q: How much flash memory is available?
- A: It has 1MB of program flash, suitable for large applications.
- Q: What is the RAM size?
- A: It includes 128KB of SRAM for data storage and stack.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C, ideal for automotive and industrial use.
- Q: What package is this offered in?
- A: It comes in a 144-LQFP package with exposed pad for better thermal performance.
ATSAM4E16EA-ANR.pdf
- Q: What is the core processor of the ATSAM4E16EA-ANR?
- A: It uses the ARM Cortex-M4 core with FPU, running at 120MHz.
- Q: How much flash memory is available?
- A: It has 1MB of program flash, suitable for large applications.
- Q: What is the RAM size?
- A: It includes 128KB of SRAM for data storage and stack.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C, ideal for automotive and industrial use.
- Q: What package is this offered in?
- A: It comes in a 144-LQFP package with exposed pad for better thermal performance.
