Microchip Technology ATSAM4E16EA-CU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.15 | $12.15 |
| 15+ | $11.77 | $176.55 |
| 25+ | $11.51 | $287.75 |
| 50+ | $10.87 | $543.50 |
| 100+ | $9.59 | $959.00 |
| N+ | $1.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4E |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 117 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

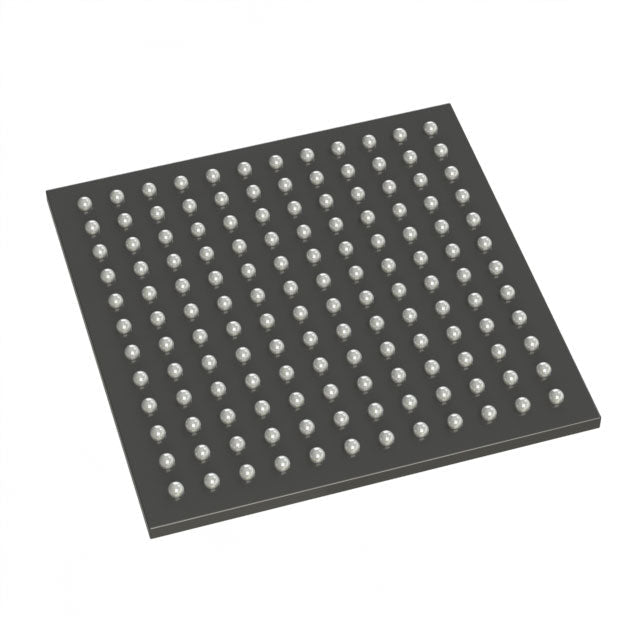

| Supplier Device Package | 144-LFBGA (10x10) |
| Package / Case | 144-LFBGA |
| ROHS |  |
The ATSAM4E16EA-CU from Microchip Technology is a 120 MHz ARM Cortex-M4 microcontroller. It features 1MB of flash and 128KB of RAM, suitable for complex embedded applications. The device includes DMA, PWM, brown-out detection, and watchdog timers. It operates from 1.62V to 3.6V and is housed in a 144-LFBGA package, with a temperature range of -40°C to 85°C, making it a versatile choice for industrial and consumer applications.
- Large Flash Memory: 1MB storage for extensive application code.
- Efficient DMA: Reduces CPU load for high-speed data transfers.
- Wide Voltage Range: 1.62V to 3.6V supports various power designs.
- Compact BGA Package: 144-ball LFBGA saves PCB area.
Industrial Ethernet Controllers
DMA and 120 MHz core handle real-time Ethernet protocols like EtherCAT.
Building Automation
Low-voltage operation (1.62V) and rich I/O support HVAC and lighting control.
Medical Device Peripherals
Reliable operation and 1MB flash store patient data and firmware.
Test & Measurement Equipment
High-speed ADC and PWM enable accurate signal generation and analysis.
Robotics Controllers
Multiple PWM channels and DMA facilitate servo control and sensor fusion.
Smart Grid Devices
Brown-out detection ensures stable operation during power fluctuations.
- Q: What is the core speed?
- A: It runs at 120 MHz with an ARM Cortex-M4 core.
- Q: How much flash memory does it have?
- A: It provides 1MB of flash memory.
- Q: What is the package type?
- A: It is available in a 144-ball LFBGA package.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
