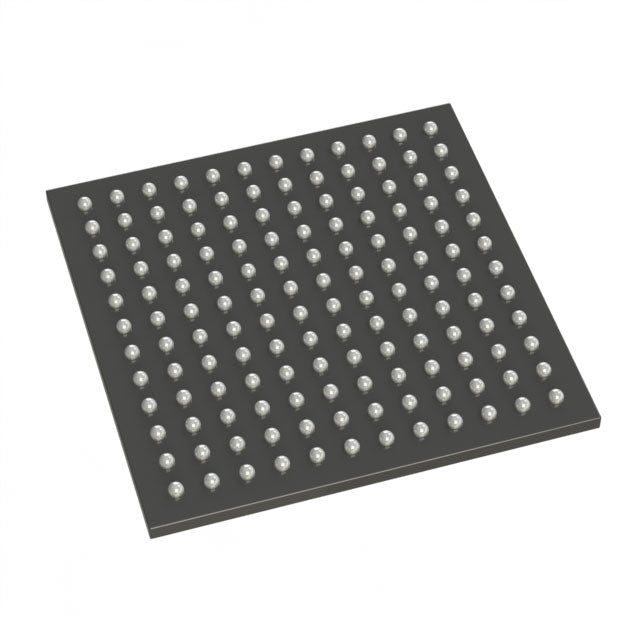

Microchip Technology ATSAM4E16EA-CUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.32 | $12.32 |
| 15+ | $11.93 | $178.95 |
| 25+ | $11.67 | $291.75 |
| 50+ | $11.02 | $551.00 |
| 100+ | $9.73 | $973.00 |
| N+ | $1.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4E |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 117 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LFBGA (10x10) |
| Package / Case | 144-LFBGA |
| ROHS |  |
The ATSAM4E16EA-CUR from Microchip is a 120MHz ARM Cortex-M4 microcontroller with 1MB flash and 128KB RAM. It operates from 1.62V to 3.6V and comes in a 144-LFBGA package. Featuring brown-out detection, DMA, POR, PWM, and WDT, it is designed for demanding industrial and medical applications requiring high reliability and performance.
- High-performance 120MHz Cortex-M4: Supports DSP and floating-point operations.
- 1MB flash memory: Enables large application code and data storage.
- 144-pin LFBGA package: Offers extensive I/O for complex system integration.
- Wide voltage range (1.62V-3.6V): Compatible with various power supplies.
Industrial Automation Controllers
The 120MHz Cortex-M4 and 1MB flash enable complex PLC logic and real-time control.
Medical Imaging Devices
High-speed processing and DMA support image data acquisition from sensors.
Networking Equipment
The 144-pin package provides ample I/O for Ethernet and serial interfaces.
Power Inverters
PWM outputs and brown-out detection ensure stable operation in solar inverters.
Avionics Systems
Reliable operation over -40°C to 85°C makes it suitable for cockpit displays.
Robotic Arm Controllers
Multiple timers and DMA channels allow precise multi-axis motion control.
- Q: What core does the ATSAM4E16EA-CUR use?
- A: It uses the ARM Cortex-M4 core at 120MHz.
- Q: What is the package type?
- A: It is available in a 144-pin LFBGA package.
- Q: What is the memory configuration?
- A: It has 1MB flash and 128KB RAM.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: Does it support DMA?
- A: Yes, it includes DMA for efficient data transfer.
