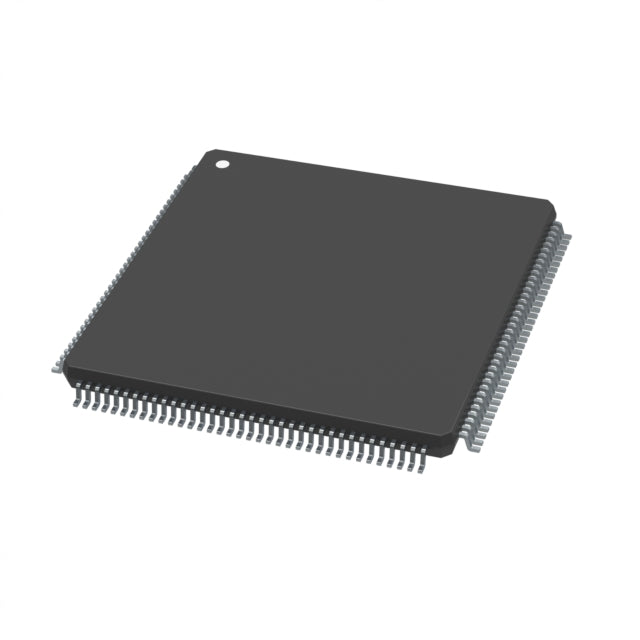

Microchip Technology ATSAM4E16EB-AN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.25 | $11.25 |
| 15+ | $10.89 | $163.35 |
| 25+ | $10.66 | $266.50 |
| 50+ | $10.06 | $503.00 |
| 100+ | $8.88 | $888.00 |
| N+ | $1.78 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4E |
| Packaging | Bulk | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 117 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The ATSAM4E16EB-AN from Microchip Technology is a powerful ARM Cortex-M4 microcontroller. It operates at 120MHz and features 1MB of flash memory and 128KB of SRAM. Designed for extended temperature ranges from -40°C to 105°C, it is ideal for industrial and automotive applications. The supply voltage range of 1.62V to 3.6V supports low-power designs. Housed in a 144-LQFP package, it offers extensive connectivity and control peripherals including DMA, PWM, and multiple watchdog timers.
- Extended temperature range: -40°C to 105°C ensures reliable operation in demanding environments.
- DSP-enhanced Cortex-M4: Enables efficient execution of complex math for control and signal processing.
- Low voltage operation: 1.62V minimum supply reduces power consumption in battery-operated devices.
- Large memory: 1MB flash and 128KB RAM support complex applications and data logging.
Automotive Body Electronics
The extended -40°C to 105°C temperature range and robust brown-out detection make it reliable for under-hood and body control modules.
Industrial Automation
The 120MHz Cortex-M4 with DSP instructions accelerates complex control algorithms for PLCs and robotic controllers.
Smart Energy Management
Low 1.62V operation and multiple low-power modes enable efficient energy metering and battery-backed monitoring systems.
Building Automation
Rich PWM and timer resources support precise control of HVAC systems, lighting, and security access panels.
Embedded Networking Gateways
With DMA and multiple serial interfaces, it can manage protocol conversion and data aggregation in industrial IoT gateways.
Test and Measurement Equipment
High-speed ADC and deterministic interrupt handling ensure accurate data acquisition in portable instruments.
- Q: What core does the ATSAM4E16EB-AN use?
- A: It uses an ARM Cortex-M4 processor running at 120MHz.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C, suitable for harsh environments.
- Q: How much flash and RAM are available?
- A: It has 1MB flash and 128KB RAM.
- Q: What is the supply voltage?
- A: The supply voltage ranges from 1.62V to 3.6V.
- Q: What package is it offered in?
- A: It comes in a 144-LQFP package.
