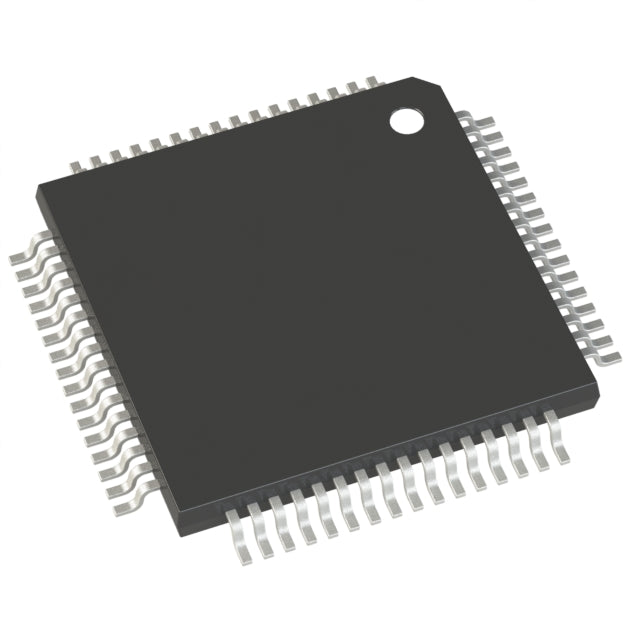

Microchip Technology ATSAM4SA16BB-ANR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.22 | $8.22 |
| 15+ | $7.96 | $119.40 |
| 25+ | $7.79 | $194.75 |
| 50+ | $7.35 | $367.50 |
| 100+ | $6.49 | $649.00 |
| N+ | $1.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4S |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 11x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The ATSAM4SA16BB-ANR from Microchip Technology is a high-performance microcontroller based on the ARM Cortex-M4 core. It runs at 120MHz and offers 1MB of flash memory and 160KB of SRAM. The device operates from 1.62V to 3.6V and includes DMA, PWM, and brown-out detection. Packaged in a 64-LQFP, it is suitable for complex embedded systems requiring large memory and processing power.
- Massive memory: 1MB flash and 160KB RAM support complex applications and data buffering.
- High-speed processing: 120MHz Cortex-M4 with DSP instructions for signal processing.
- Extended temperature: Operates up to 105°C for industrial environments.
- Rich connectivity: Multiple serial interfaces and DMA for efficient peripheral management.
High-End Industrial HMI
The 1MB flash and 120MHz Cortex-M4 enable rich graphical user interfaces on TFT displays.
Smart Grid Meters
Its high-speed ADC and DMA support accurate power measurement and communication in smart meters.
Medical Imaging Devices
The large memory and DSP instructions facilitate image processing in portable ultrasound machines.
Multi-Protocol Gateways
With 160KB RAM, it can handle multiple communication stacks simultaneously.
Advanced Robotics
The 105°C rating and PWM capabilities support heavy-duty robotic arms in factory floors.
Data Loggers
Its 1MB flash allows extended local data storage in remote monitoring systems.
- Q: What core does the ATSAM4SA16BB-ANR use?
- A: It is based on the ARM Cortex-M4 processor.
- Q: What is the maximum speed?
- A: It operates at up to 120MHz.
- Q: How much flash memory is available?
- A: It has 1MB of flash memory.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C.
- Q: Does it support DMA and PWM?
- A: Yes, it includes DMA, PWM, and brown-out detection.
