Microchip Technology ATSAM4SA16CA-CFUR
Regular price
$8.84
Regular price
$9.30
Sale price
$8.84
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.84 | $8.84 |
| 15+ | $8.56 | $128.40 |
| 25+ | $8.37 | $209.25 |
| 50+ | $7.91 | $395.50 |
| 100+ | $6.98 | $698.00 |
| N+ | $1.40 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4S |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

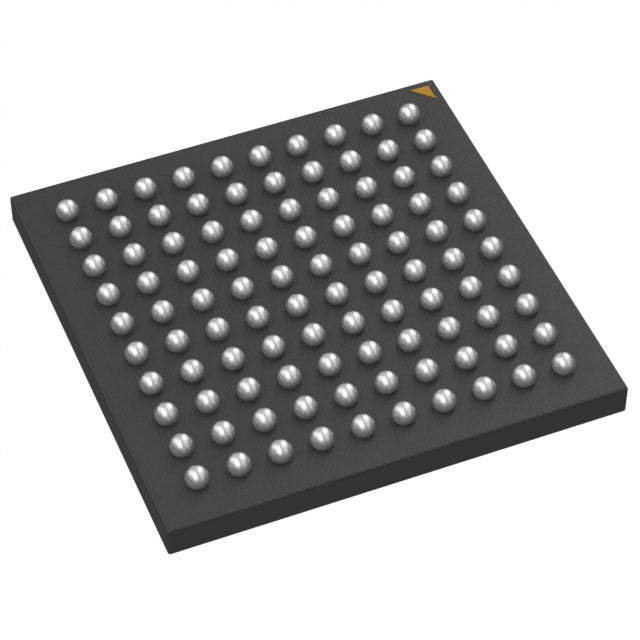

| Supplier Device Package | 100-VFBGA (7x7) |
| Package / Case | 100-VFBGA |
| ROHS |  |
The ATSAM4SA16CA-CFUR from Microchip is a 120MHz ARM Cortex-M4 MCU with 1MB flash and 160KB RAM. It operates from 1.62V to 3.6V and comes in a 100-VFBGA package, ideal for high-performance embedded applications.
- 1MB flash for large application code
- 120MHz Cortex-M4 with DSP instructions
- Low voltage operation (1.62V) for power-sensitive designs
- Compact VFBGA package
Industrial Automation
120MHz Cortex-M4 with 1MB flash enables complex control algorithms.
Medical Devices
Low voltage operation and high reliability for portable equipment.
Smart Grid
Large memory for protocol stacks and data logging.
Building Automation
PWM and DMA support efficient sensor/actuator management.
Robotics
High-speed processing for real-time motion control.
Data Acquisition
160KB RAM buffers high-rate sensor data.
- Q: What is the core processor?
- A: It uses an ARM Cortex-M4 core.
- Q: What is the maximum speed?
- A: It runs at 120MHz.
- Q: How much flash and RAM does it have?
- A: It has 1MB flash and 160KB RAM.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V.
Base Product Number ：
ATSAM4SA16CA
ATSAM4SA16CA-CFUR.pdf
- Q: What is the core processor?
- A: It uses an ARM Cortex-M4 core.
- Q: What is the maximum speed?
- A: It runs at 120MHz.
- Q: How much flash and RAM does it have?
- A: It has 1MB flash and 160KB RAM.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V.
×
