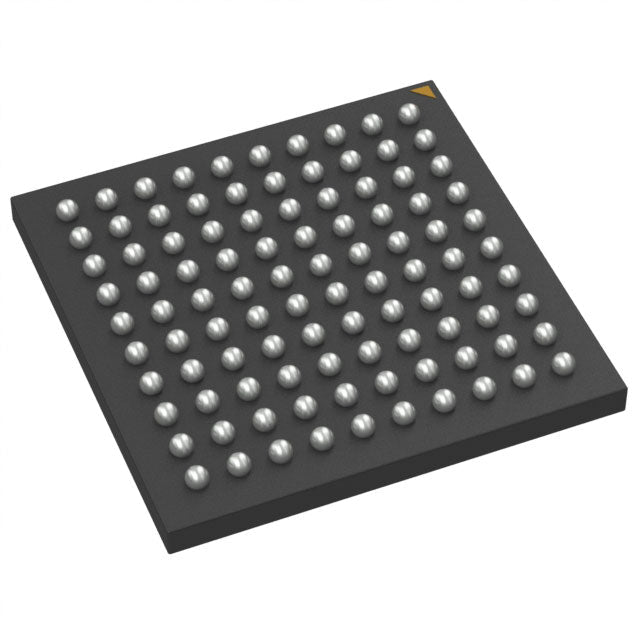

Microchip Technology ATSAM4SA16CA-CUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.84 | $8.84 |
| 15+ | $8.56 | $128.40 |
| 25+ | $8.37 | $209.25 |
| 50+ | $7.91 | $395.50 |
| 100+ | $6.98 | $698.00 |
| N+ | $1.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4S |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (9x9) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The Microchip ATSAM4SA16CA-CUR is a high-performance 32-bit MCU based on the ARM Cortex-M4 core, running at 120MHz. It features 1MB flash and 160KB RAM, with a supply voltage range of 1.62V-3.6V. The 100-TFBGA package is ideal for space-constrained applications. Includes Brown-out Detect/Reset, DMA, POR, PWM, and WDT for reliable operation.
- High-speed processing: 120MHz Cortex-M4 with DSP instructions for complex algorithms.
- Large memory: 1MB flash and 160KB RAM support extensive firmware and data.
- Low voltage operation: 1.62V minimum enables energy-efficient designs.
- Robust safety: Brown-out detection and WDT ensure system integrity.
Industrial Motor Control
120MHz Cortex-M4 with PWM and DMA enables high-frequency inverter control.
Smart Grid Equipment
1MB flash for complex metering algorithms, wide voltage tolerance for power line variations.
Medical Imaging
High-speed processing and large RAM support real-time image data buffering.
Automotive Aftermarket
Extended temperature range (-40°C to 85°C) suits in-vehicle telematics.
Robotics
DMA and PWM provide precise control for multi-axis systems.
Networking
Large memory supports protocol stacks for industrial Ethernet.
- Q: What core does it use?
- A: ARM Cortex-M4 at 120MHz.
- Q: What is the memory size?
- A: 1MB flash and 160KB RAM.
- Q: What is the voltage range?
- A: 1.62V to 3.6V.
- Q: What package is available?
- A: 100-pin TFBGA.
- Q: Does it have safety features?
- A: Yes, Brown-out Detect/Reset, DMA, POR, PWM, WDT.
