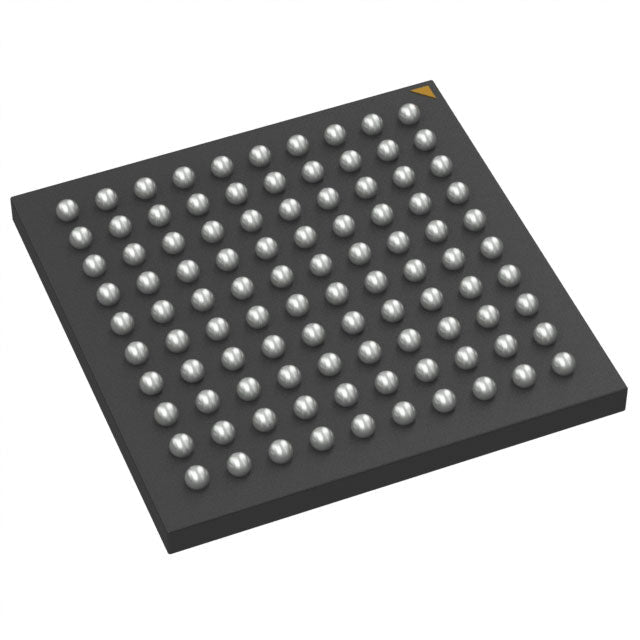

Microchip Technology ATSAM4SA16CB-CN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.84 | $8.84 |
| 15+ | $8.56 | $128.40 |
| 25+ | $8.37 | $209.25 |
| 50+ | $7.91 | $395.50 |
| 100+ | $6.98 | $698.00 |
| N+ | $1.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4S |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (9x9) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The Microchip ATSAM4SA16CB-CN is a robust 32-bit MCU based on the ARM Cortex-M4 core, running at 120MHz. It offers 1MB flash and 160KB RAM, with a supply voltage of 1.62V-3.6V. The 100-TFBGA package is compact and reliable. Designed for extended temperature ranges (-40°C to 105°C), it includes Brown-out Detect/Reset, DMA, POR, PWM, and WDT for demanding applications.
- Extended temperature range: -40°C to 105°C for harsh environments.
- High performance: 120MHz Cortex-M4 with DSP capabilities.
- Large memory: 1MB flash and 160KB RAM for complex applications.
- Safety features: Brown-out detection and WDT enhance system reliability.
Automotive Engine Control
Extended temperature range (-40°C to 105°C) and robust safety features meet automotive requirements.
Industrial Drives
High-speed PWM and DMA enable precise motor control in variable frequency drives.
Smart Factory Sensors
1MB flash supports advanced analytics and predictive maintenance algorithms.
Power Conversion
Fast ADC and PWM for digital power supplies and inverters.
Avionics
Reliable operation under extreme temperatures for flight control systems.
Oil & Gas Monitoring
Wide temperature range and WDT ensure continuous operation in remote sites.
- Q: What is the core processor?
- A: ARM Cortex-M4 at 120MHz.
- Q: What is the memory capacity?
- A: 1MB flash and 160KB RAM.
- Q: What is the voltage range?
- A: 1.62V to 3.6V.
- Q: What package is this?
- A: 100-pin TFBGA.
- Q: What is the operating temperature?
- A: -40°C to 105°C, suitable for harsh environments.
