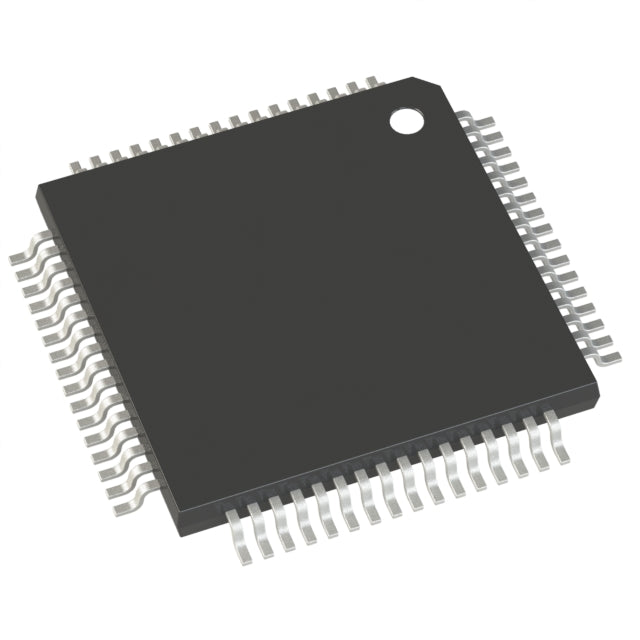

Microchip Technology ATSAM4SD16CA-AN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4S |
| Packaging | | Tray |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The ATSAM4SD16CA-AN from Microchip is a high-performance Cortex-M4 MCU at 120MHz, featuring 1MB flash and 160KB SRAM. Its 64-LQFP package and extended temperature range make it suitable for demanding industrial and automotive applications, offering enhanced peripheral integration.
- Enhanced Peripheral Set: The CA variant provides additional connectivity options for complex system designs.
- High-Speed Processing: 120MHz Cortex-M4 with FPU handles advanced algorithms efficiently.
- Large Memory Capacity: 1MB flash and 160KB SRAM support data-intensive applications.
- Industrial-Grade Reliability: -40°C to 105°C range and Brown-out detection ensure stable operation.
Advanced Motor Control
The enhanced peripheral set in the CA variant supports field-oriented control of BLDC motors with 120MHz processing for high-bandwidth current loops.
Grid-Tied Inverters
With 1MB flash for MPPT algorithms and 160KB RAM for waveform generation, it manages solar inverters with high efficiency.
Robotic Vision Systems
The Cortex-M4 FPU accelerates image preprocessing, while DMA transfers pixel data without CPU intervention, enabling real-time object tracking.
Telecom Base Stations
Its robust temperature range and protection features make it suitable for remote radio heads, handling control plane tasks reliably.
Avionics Sensors
With -40°C to 105°C operation and WDT, it processes air data and inertial measurements in flight control computers.
High-End Vending Machines
Enhanced I/O capabilities allow multiple payment interfaces and inventory tracking, with PWM controlling dispensing motors.
- Q: How does the ATSAM4SD16CA differ from the BA variant?
- A: The CA variant typically offers additional I/O pins or enhanced peripherals, while maintaining the same core and memory.
- Q: What is the maximum operating frequency?
- A: It runs at 120MHz.
- Q: What is the flash size?
- A: It has 1MB of flash memory.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C.
- Q: What package is used?
- A: It is housed in a 64-LQFP package.
