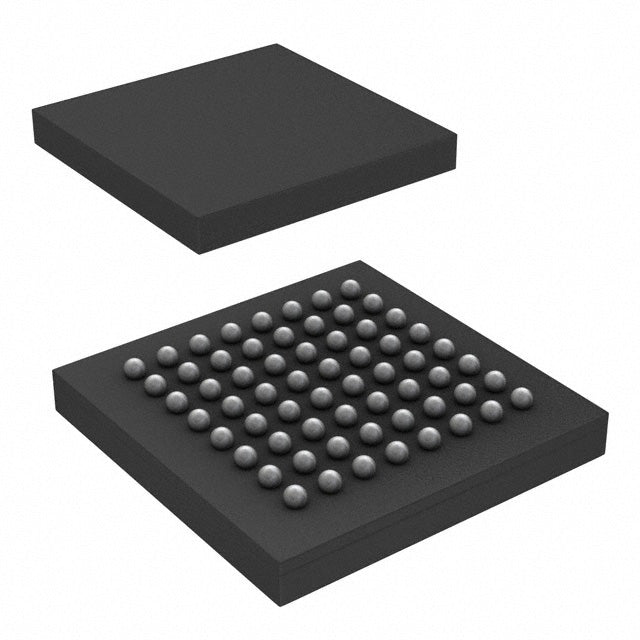

Microchip Technology ATSAM4SD32BA-UUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4S |
| Packaging | | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 11x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-WLCSP (4.42x3.42) |
| Package / Case | 64-UFBGA, WLCSP |
| ROHS |  |
The ATSAM4SD32BA-UUR from Microchip is a high-performance 32-bit microcontroller featuring an ARM Cortex-M4 core at 120MHz. It offers 2MB of flash and 160KB of SRAM, providing ample resources for demanding applications. With a supply range of 1.62V to 3.6V and integrated DMA, PWM, brown-out detection, and watchdog timer, it delivers robust performance in a compact 64-UFBGA package.
- High-speed processing: 120MHz Cortex-M4 accelerates real-time control.
- Large memory capacity: 2MB flash and 160KB SRAM support complex algorithms.
- Rich peripherals: DMA, PWM, and multiple timers enhance system integration.
- Wide temperature range: -40°C to 85°C suits industrial environments.
Industrial Control Panels
The 120MHz Cortex-M4 with 2MB flash handles complex PLC logic and HMI interfaces.
Medical Imaging Devices
High-speed processing and large RAM support ultrasound and portable X-ray data acquisition.
Smart Grid Meters
Robust peripherals and wide voltage range enable accurate energy monitoring.
Automotive Telematics
Reliable operation at -40°C to 85°C suits vehicle tracking and diagnostics.
Advanced Robotics
Multiple PWM channels and DMA facilitate precise motor control and sensor fusion.
Networking Gateways
2MB flash allows running embedded Linux or RTOS with rich connectivity stacks.
- Q: What is the core speed of the ATSAM4SD32BA-UUR?
- A: It runs at 120MHz using an ARM Cortex-M4 core.
- Q: What memory does it have?
- A: It includes 2MB flash and 160KB SRAM.
- Q: What is the voltage range?
- A: It operates from 1.62V to 3.6V.
- Q: What package is available?
- A: It comes in a 64-UFBGA (WLCSP) package.
- Q: Does it have PWM and DMA?
- A: Yes, it features PWM, DMA, brown-out detection, POR, and WDT.
