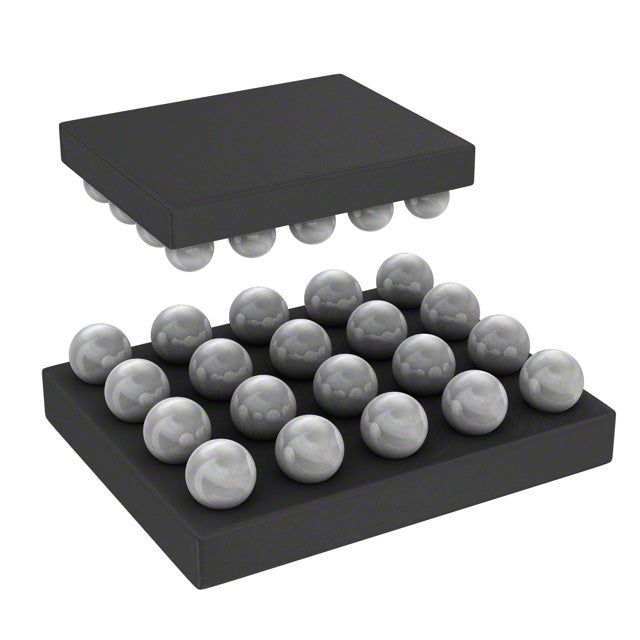

Microchip Technology ATSAMD11D14A-UUT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM D11D |
| Packaging | | Box |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT |
| Number of I/O | 18 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-WLCSP (2.43x1.93) |
| Package / Case | 20-XFBGA, WLCSP |
| ROHS |  |
The ATSAMD11D14A-UUT from Microchip is a low-power 32-bit microcontroller based on the ARM Cortex-M0+ core. Running at 48MHz, it provides 16KB flash and 4KB SRAM in an ultra-compact 20-ball WLCSP package. With a supply voltage range of 1.62V to 3.63V and integrated DMA, brown-out detection, and watchdog timer, it is designed for space-constrained, battery-operated applications.
- Ultra-compact: 20-XFBGA package saves PCB area for miniaturized designs.
- Low power: 1.62V minimum supply and sleep modes reduce energy consumption.
- Efficient DMA: Offloads data transfer tasks from the CPU.
- Reliable operation: Brown-out reset and WDT ensure stable performance.
Compact Sensor Nodes
The tiny WLCSP package and 48MHz Cortex-M0+ core allow integration into miniaturized environmental sensors.
Battery-Powered Remote Controls
Low 1.62V operation and sleep modes extend battery life in consumer remotes.
LED Lighting Controllers
DMA and PWM peripherals enable smooth lighting effects without CPU overhead.
Portable Health Trackers
The small footprint and low power make it suitable for fitness bands and pulse oximeters.
Smart Accessories
Ideal for smart watches and earbuds requiring minimal board space.
Automotive Interior Sensors
Wide temperature range and robust reset circuitry support in-cabin monitoring.
- Q: What core does the ATSAMD11D14A-UUT use?
- A: It uses an ARM Cortex-M0+ processor at 48MHz.
- Q: What is the operating voltage?
- A: It operates from 1.62V to 3.63V.
- Q: How much flash and RAM are available?
- A: It has 16KB flash and 4KB SRAM.
- Q: What package is this?
- A: It comes in a 20-XFBGA (WLCSP) package.
- Q: Does it support DMA?
- A: Yes, it includes DMA, POR, WDT, and brown-out detection.
