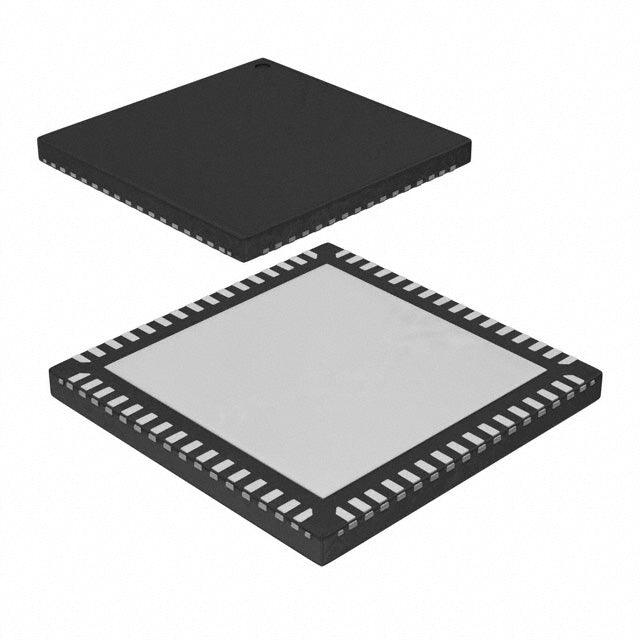

Microchip Technology ATSAMD21J17D-MFT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.66 | $3.66 |
| 15+ | $3.54 | $53.10 |
| 25+ | $3.47 | $86.75 |
| 50+ | $3.27 | $163.50 |
| 100+ | $2.89 | $289.00 |
| N+ | $0.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM D21J, Functional Safety (FuSa) |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V |
| Data Converters | A/D 20x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-QFN (9x9) |
| Package / Case | 64-VFQFN Exposed Pad |
| ROHS |  |
The ATSAMD21J17D-MFT from Microchip Technology is a 32-bit ARM Cortex-M0+ based MCU operating at 48MHz. It offers 128KB flash and 16KB SRAM in a compact 64-VFQFN package. With supply voltage from 1.62V to 3.63V and extended temperature range, it is designed for demanding embedded applications requiring DMA, I2S, and PWM peripherals.
- High efficiency: ARM Cortex-M0+ core delivers 48MHz performance with low power consumption.
- Extended temperature range: -40°C to 125°C enables use in harsh environments.
- Rich peripherals: DMA, I2S, PWM, and WDT reduce external component count.
- Flexible power: 1.62V-3.63V supply supports battery and regulated power designs.
Industrial Sensor Nodes
With 128KB flash and 16KB RAM, the ATSAMD21J17D-MFT handles sensor fusion algorithms at 48MHz while maintaining low power consumption.
Portable Medical Devices
The wide 1.62V-3.63V supply range and -40°C to 125°C operation suit battery-powered diagnostic tools requiring reliable performance in varying conditions.
IoT Edge Controllers
Integrated DMA and I2S support efficient data streaming from peripherals to memory, reducing CPU load for communication protocols.
Motor Control Systems
PWM channels and WDT ensure precise timing and system recovery in brushless DC motor applications.
Smart Home Hubs
The 64-pin package provides ample GPIOs for multiple sensor interfaces, while brown-out detection ensures stable operation during power fluctuations.
Automotive Aftermarket Modules
125°C junction temperature rating enables deployment in engine bay or under-hood environments.
- Q: What is the operating voltage range?
- A: 1.62V to 3.63V.
- Q: What is the maximum clock speed?
- A: 48MHz.
- Q: What package is available?
- A: 64-VFQFN exposed pad.
- Q: Does it support DMA?
- A: Yes, includes DMA controller.
- Q: What is the temperature range?
- A: -40°C to 125°C.
