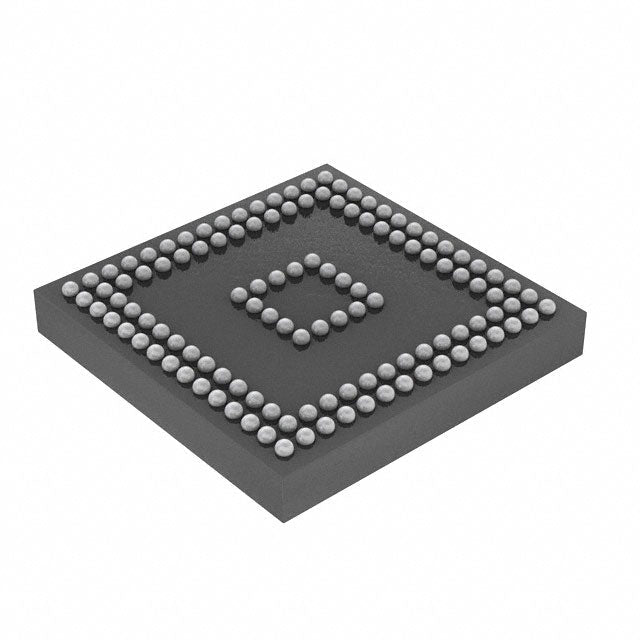

Microchip Technology ATSAME54P20A-CTUT-EFP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 34.95 | Dhs. 34.95 |
| 15+ | Dhs. 33.85 | Dhs. 507.75 |
| 25+ | Dhs. 33.11 | Dhs. 827.75 |
| 50+ | Dhs. 31.27 | Dhs. 1,563.50 |
| 100+ | Dhs. 27.59 | Dhs. 2,759.00 |
| N+ | Dhs. 5.52 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM E54 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 99 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.63V |
| Data Converters | A/D 32x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 120-TFBGA (8x8) |
| Package / Case | 120-TFBGA |
| ROHS |  |
Product Overview
The ATSAME54P20A-CTUT-EFP from Microchip Technology is a high-performance 32-bit microcontroller featuring an ARM® Cortex®-M4F processor core running at 120MHz. This advanced MCU is part of the SAM E54 series and delivers exceptional processing power combined with extensive connectivity options, making it ideal for demanding embedded applications including industrial automation, IoT devices, motor control systems, and advanced sensor networks.
Key Features & Benefits
- High-Performance Processing: ARM Cortex-M4F core with floating-point unit (FPU) operating at 120MHz ensures fast execution of complex algorithms
- Generous Memory: 1MB Flash program memory and 256KB RAM provide ample space for sophisticated applications
- Rich Connectivity: Supports multiple communication protocols including Ethernet, USB, CANbus, SPI, I2C, UART/USART, and more
- Advanced Peripherals: Integrated DMA, PWM, I2S, watchdog timer, and brown-out detection enhance system reliability
- Flexible I/O: 99 I/O pins offer extensive interfacing capabilities for complex designs
- Precision Data Conversion: 32 channels of 12-bit ADC and 2 channels of 12-bit DAC for accurate analog signal processing
- Wide Operating Range: Functions reliably from -40°C to 85°C with supply voltage from 1.71V to 3.63V
- RoHS Compliant: Environmentally friendly and meets international standards
Applications
This versatile microcontroller is perfectly suited for industrial control systems, building automation, medical devices, automotive electronics, smart energy management, robotics, and advanced IoT applications requiring robust connectivity and processing power.
Authentic Components from Authorized Distributors
We source all our electronic components directly from authorized distributors, ensuring you receive genuine Microchip Technology products with full manufacturer warranty and traceability. Every ATSAME54P20A-CTUT-EFP microcontroller is quality-verified and ready for your next project.
Related Resources
Explore our complete range of microcontrollers for your embedded system needs. Visit our homepage to discover more premium electronic components, or check our technical blog for the latest industry insights, application notes, and product updates.
ATSAME54P20A-CTUT-EFP.pdf
