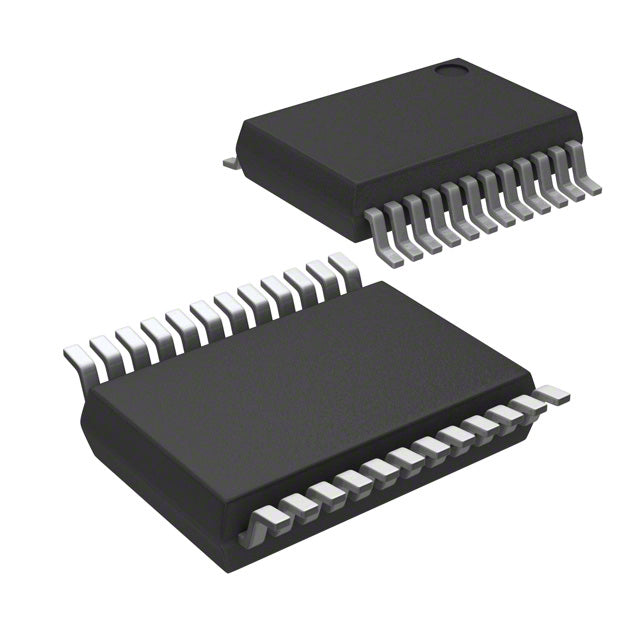

Microchip Technology ATSAML11D16A-YFT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.06 | $3.06 |
| 15+ | $2.96 | $44.40 |
| 25+ | $2.90 | $72.50 |
| 50+ | $2.74 | $137.00 |
| 100+ | $2.42 | $242.00 |
| N+ | $0.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM L11 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M23 |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V |
| Data Converters | A/D 5x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SSOP |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The ATSAML11D16A-YFT is a 32-bit microcontroller from Microchip Technology, based on the ARM Cortex-M23 core running at 32MHz. It provides 64KB flash and 16KB RAM, with a supply voltage range of 1.62V to 3.63V. The device includes DMA, PWM, and comprehensive protection features, packaged in a 24-SSOP rated for -40°C to 125°C.
- Secure Cortex-M23 core: Hardware-based security features protect firmware and data.
- Ultra-low voltage operation: 1.62V minimum enables single-cell battery designs.
- High-temperature tolerance: 125°C rating expands application scope to automotive and industrial.
- Large RAM for size: 16KB RAM in a 24-pin package supports complex state machines.
Secure IoT Edge Nodes
The Cortex-M23 core with TrustZone technology enables secure boot and isolated firmware updates for connected sensors.
Battery-Powered Medical Devices
1.62V operation allows direct CR2032 coin cell usage, while 125°C rating supports sterilization processes.
Industrial Process Controllers
With 64KB flash and 16KB RAM, it handles complex PID loops and data logging in harsh factory environments.
Smart Agriculture Probes
Low power and wide temperature range make it suitable for soil sensors deployed outdoors year-round.
Portable Instrumentation
The compact SSOP-24 package fits handheld multimeters or calibrators requiring high reliability.
Automotive Sensor Interfaces
125°C rating and robust POR/WDT ensure reliable operation in engine compartment sensors.
- Q: What core does this MCU use?
- A: ARM Cortex-M23, a secure-capable core.
- Q: What is the maximum speed?
- A: 32MHz.
- Q: What is the voltage range?
- A: 1.62V to 3.63V, supporting low-power operation.
- Q: What package is it?
- A: 24-SSOP (5.30mm width).
- Q: What temperature range?
- A: -40°C to 125°C.
