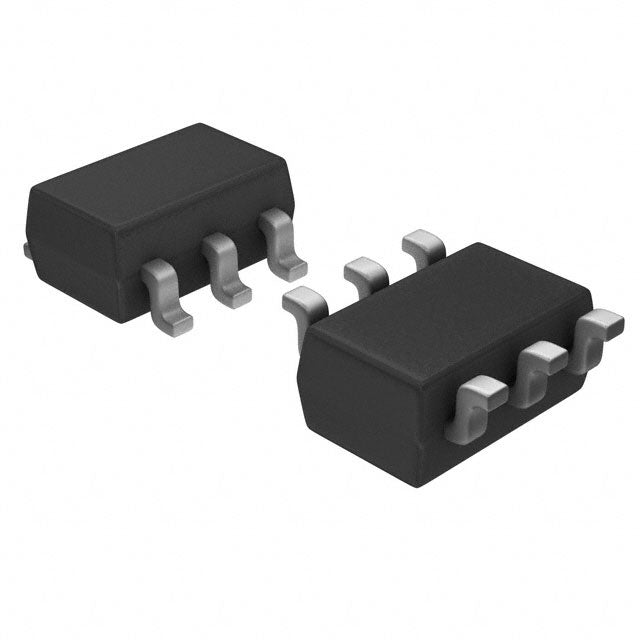

Microchip Technology ATTINY10-TS8R
Regular price
$0.42
Regular price
Sale price
$0.42
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.42 | $0.42 |
| 15+ | $0.39 | $5.85 |
| 25+ | $0.38 | $9.50 |
| 50+ | $0.36 | $18.00 |
| 100+ | $0.32 | $32.00 |
| N+ | $0.06 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | - |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 4 |
| Program Memory Size | 1KB (512 x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Package / Case | SOT-23-6 |
| ROHS |  |
The Microchip ATTINY10-TS8R is a rugged 8-bit AVR MCU in a SOT-23-6 package, rated for -40°C to 125°C. It provides 1KB Flash and 32B SRAM, running at 10MHz from 1.8V to 5.5V. Ideal for high-temperature, space-constrained applications.
- Extended Temperature Range: Operates from -40°C to 125°C for automotive and industrial use.
- 1KB Flash in Tiny Package: Enough for simple control routines in minimal space.
- Low Power Consumption: Suitable for battery-powered remote sensors.
- Robust WDT: Ensures system recovery in noisy environments.
High-Temperature Industrial Sensors
Operate reliably up to 125°C in engine compartments or industrial ovens for data acquisition.
Automotive Interior Lighting
Control ambient LED lighting with PWM in dashboards, surviving extreme temperature swings.
Compact Power Tools
Manage trigger speed control for small drills or fans with the 1KB Flash.
Smart Fuse Monitoring
Detect blown fuses and report status via a single I/O in automotive fuse boxes.
Field-Replaceable Calibration
Store unique calibration data for transducers in the 1KB Flash, simplifying manufacturing.
Battery Protection Circuit
Monitor over-voltage/under-voltage and disconnect load with a simple logic routine.
- Q: What is the temperature range?
- A: It operates from -40°C to 125°C, suitable for harsh environments.
- Q: What is the supply voltage?
- A: It runs from 1.8V to 5.5V.
- Q: What is the maximum speed?
- A: The AVR core runs at up to 10MHz.
- Q: How much Flash is available?
- A: It has 1KB Flash and 32B SRAM.
- Q: What package is it?
- A: It comes in a SOT-23-6 package.
Base Product Number ：
ATTINY10
