Microchip Technology ATTINY102-M8R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.16 | $3.16 |
| 15+ | $0.73 | $10.95 |
| 25+ | $0.71 | $17.75 |
| 50+ | $0.67 | $33.50 |
| 100+ | $0.59 | $59.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 12MHz |
| Connectivity | UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 6 |
| Program Memory Size | 1KB (1K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 5x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-UDFN (2x3) |
| Package / Case | 8-UFDFN Exposed Pad |
| ROHS |  |

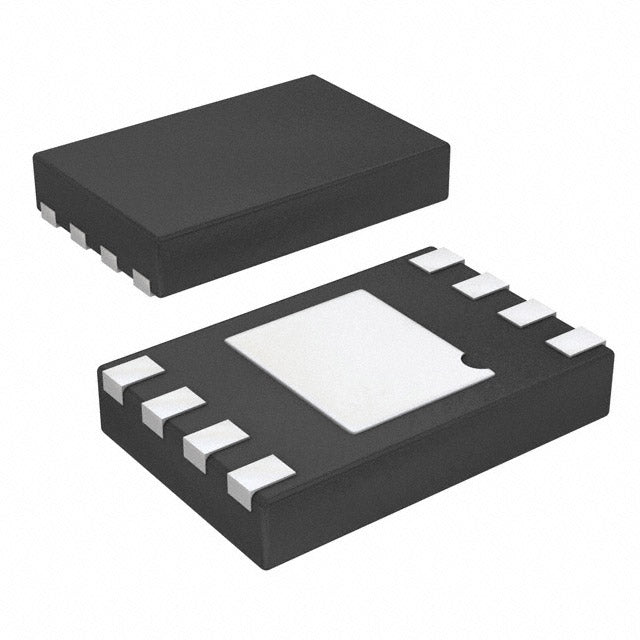

The ATTINY102-M8R is an 8-bit AVR microcontroller in a space-saving 8-UFDFN package with exposed pad. It operates from 1.8V to 5.5V at speeds up to 12MHz, featuring 1KB flash and 32 bytes RAM. Integrated PWM, Power-on Reset, and Watchdog Timer provide robust control in compact designs. Its extended temperature range makes it suitable for automotive and industrial applications.
- Exposed pad enhances thermal dissipation for high-current PWM loads.
- Ultra-small UFDFN package fits in miniaturized IoT devices.
- 1.8V minimum supply supports single-cell coin battery operation.
- Integrated WDT and POR reduce external supervision circuitry.
Wearable Fitness Devices
The tiny UFDFN package and 1.8V operation enable ultra-thin, battery-efficient step counters.
Automotive Sensor Modules
Exposed pad aids heat dissipation in exhaust temperature monitoring circuits rated to 125°C.
Smart Home Thermostats
PWM drives heating elements while WDT ensures failsafe operation during firmware hangs.
Industrial Vibration Monitors
12MHz speed processes accelerometer data in real-time for predictive maintenance.
Portable Instrumentation
1KB flash stores calibration constants, while low power extends field operation.
Security Key Fobs
Compact footprint fits in slim enclosures with reliable POR for instant wake-up.
- Q: What package does this use?
- A: It comes in an 8-UFDFN package with exposed pad for improved thermal performance.
- Q: What is the voltage range?
- A: It operates from 1.8V to 5.5V, compatible with standard digital supplies.
- Q: Does it have PWM?
- A: Yes, it includes PWM channels suitable for dimming and motor control.
- Q: What is the temperature range?
- A: It is rated for -40°C to 125°C, suitable for harsh environments.
