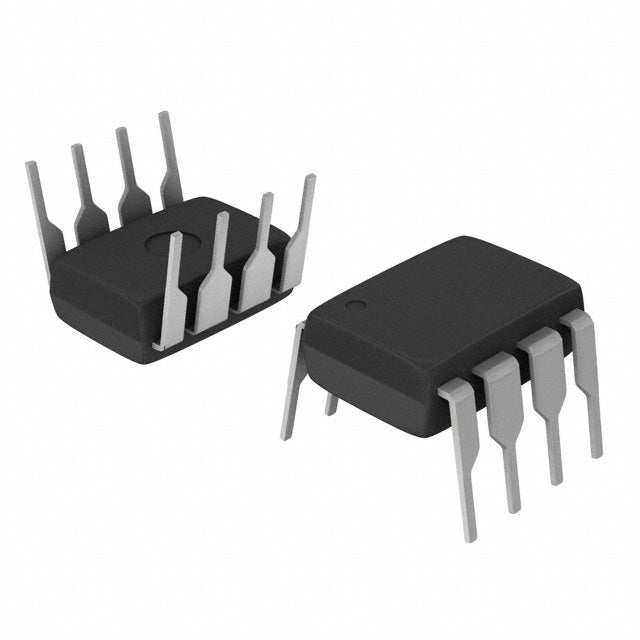

Microchip Technology ATTINY13-20PU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.66 | $1.66 |
| 15+ | $1.61 | $24.15 |
| 25+ | $1.58 | $39.50 |
| 50+ | $1.49 | $74.50 |
| 100+ | $1.31 | $131.00 |
| N+ | $0.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | Tube | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 6 |
| Program Memory Size | 1KB (512 x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 64 x 8 |
| RAM Size | 64 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-PDIP |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| ROHS |  |
The Microchip ATTINY13-20PU is a compact 8-bit AVR microcontroller in a classic 8-pin DIP package. It provides 1KB of flash memory and 64 bytes of SRAM, operating at speeds up to 20MHz. With a supply voltage range of 2.7V to 5.5V, it includes essential features like brown-out detection, PWM, and a watchdog timer. This MCU is ideal for simple, cost-sensitive embedded applications.
- Through-Hole Package: Easy to solder and breadboard for prototyping.
- High Speed for Size: 20MHz clock in a tiny 8-pin package.
- Integrated Safety Features: BOD and WDT enhance reliability.
- Cost-Effective: Minimal memory and pins reduce unit cost.
Simple LED Blinkers
With its minimal 1KB flash and 64 bytes of RAM, it is perfect for simple timing and blinking circuits in toys and indicators.
Small Sensor Triggers
The 8-pin DIP package is breadboard-friendly, making it ideal for prototyping light or temperature threshold triggers.
Low-Cost PWM Dimming
Its PWM capability at 20MHz allows for basic LED dimming in consumer electronics where cost is critical.
Battery Monitors
Operating from 2.7V, it can monitor battery voltage and drive a status LED in portable devices.
Educational Kits
The DIP package and simple architecture make it an excellent choice for teaching microcontroller fundamentals.
