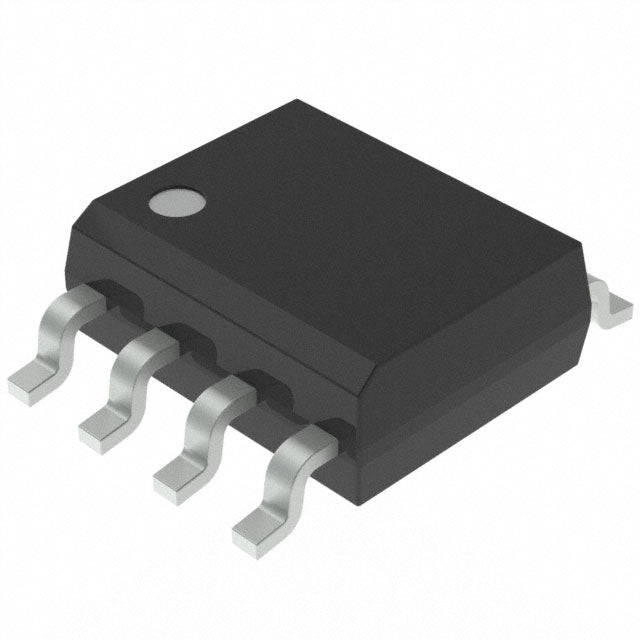

Microchip Technology ATTINY13-20SSU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.49 | $1.49 |
| 15+ | $1.44 | $21.60 |
| 25+ | $1.41 | $35.25 |
| 50+ | $1.33 | $66.50 |
| 100+ | $1.18 | $118.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | Tube | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 6 |
| Program Memory Size | 1KB (512 x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 64 x 8 |
| RAM Size | 64 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
The ATTINY13-20SSU is a low-power AVR 8-bit microcontroller from Microchip, offering 1KB flash and 64 bytes RAM in a compact 8-SOIC package. It runs at up to 20MHz with a 2.7V-5.5V supply, featuring built-in brown-out detection, POR, PWM, and watchdog timer for reliable standalone operation.
- Ultra-low power consumption: Optimized for battery life with multiple sleep modes.
- High-speed 20MHz AVR core: Fast execution for time-critical tasks.
- Integrated analog comparator: Simplifies sensor threshold detection without external parts.
- Small 8-SOIC footprint: Saves PCB space for miniaturized designs.
Compact Sensor Interfaces
Ideal for reading analog sensors with its 10-bit ADC and PWM output for signal conditioning in tight 8-pin layouts.
Battery-Powered Devices
Operates from 2.7V, enabling direct coin-cell or 3V battery operation with low-power sleep modes.
LED Lighting Control
Use PWM channels to drive LEDs with smooth dimming, leveraging the 20MHz core for real-time adjustments.
Motor Commutation
Small brushless DC motors benefit from the 1KB flash for simple commutation logic and WDT for fault recovery.
Automotive Aftermarket
With -40°C to 85°C range and brown-out detection, it suits under-hood monitoring for non-critical signals.
Development Prototyping
8-SOIC package allows breadboard-friendly prototyping for quick proof-of-concept designs.
- Q: What is the operating voltage range?
- A: 2.7V to 5.5V.
- Q: What is the maximum clock speed?
- A: 20MHz.
- Q: How much flash memory is available?
- A: 1KB (512 x 16).
- Q: What package is this available in?
- A: 8-SOIC.
- Q: Does it include a watchdog timer?
- A: Yes, WDT is included.
