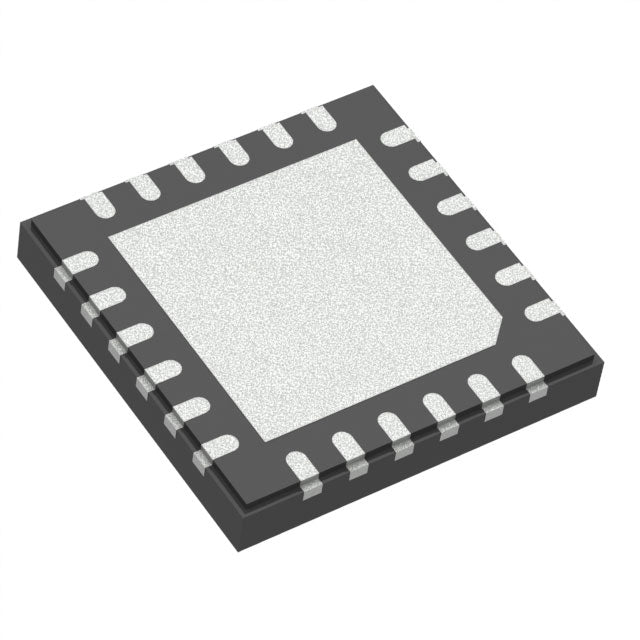

Microchip Technology ATTINY1617-MBT-VAO
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR™ 1, Functional Safety (FuSa) |
| Packaging | | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 24x10b; D/A 3x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 24-VQFN (4x4) |
| Package / Case | 24-VFQFN Exposed Pad |
| ROHS |  |
The ATTINY1617-MBT-VAO from Microchip is a low-power 8-bit AVR microcontroller in a compact 24-VFQFN package. It operates from 2.7V to 5.5V at speeds up to 16MHz, with 16KB flash and 2KB SRAM. Integrated features include brown-out detection, power-on reset, PWM, and watchdog timer, making it ideal for space-constrained industrial and consumer applications requiring reliable performance in harsh environments.
- Wide voltage range (2.7V-5.5V) enables direct battery operation without external regulators.
- 16KB flash provides ample code space for complex control algorithms.
- Integrated WDT and BOD enhance system reliability in noisy environments.
- Compact 24-VFQFN package saves PCB space for miniaturized designs.
- Extended temperature range (-40°C to 105°C) suits industrial applications.
Industrial Sensor Nodes
With 16MHz AVR core and 2KB SRAM, it handles sensor fusion algorithms while maintaining low power for battery-operated field devices.
Portable Medical Monitors
The 2.7V minimum supply and WDT ensure reliable operation in battery-powered health tracking devices, supporting continuous vital sign monitoring.
Smart Home Controllers
PWM channels and brown-out detection make it suitable for driving LED dimmers and motorized blinds with stable performance across voltage fluctuations.
Automotive Interior Lighting
Operating up to 105°C, it can manage ambient lighting patterns in vehicle cabins, using PWM for smooth intensity control.
Battery Management Systems
Its low-power sleep modes and POR protect battery monitoring circuits in portable electronics, extending battery life.
IoT Edge Devices
16KB flash allows storing communication protocols and local decision logic, reducing cloud dependency for simple automation tasks.
- Q: What is the operating voltage range?
- A: 2.7V to 5.5V.
- Q: What is the maximum clock speed?
- A: 16MHz.
- Q: How much flash memory does it have?
- A: 16KB.
- Q: What package is available?
- A: 24-VFQFN exposed pad.
- Q: What is the temperature range?
- A: -40°C to 105°C.
