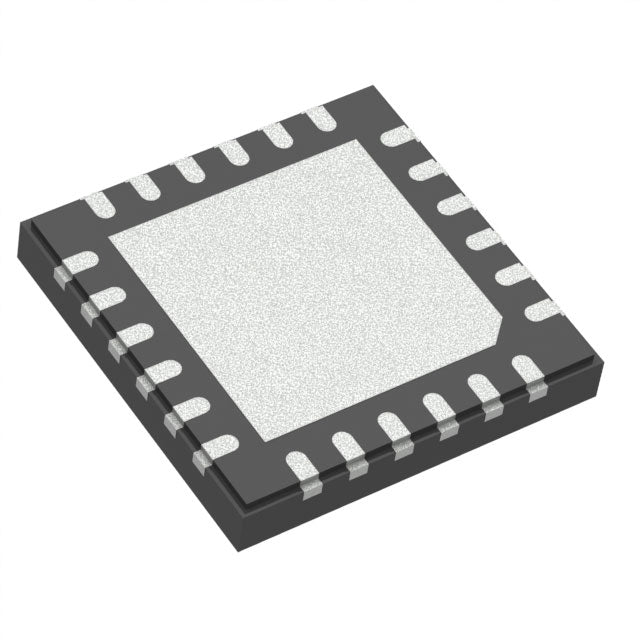

Microchip Technology ATTINY1617-MZ-VAO
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR™ 1, Functional Safety (FuSa) |
| Packaging | | Tray |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 24x10b; D/A 3x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 24-VQFN (4x4) |
| Package / Case | 24-VFQFN Exposed Pad |
| ROHS |  |
The ATTINY1617-MZ-VAO is a rugged 8-bit AVR microcontroller from Microchip, designed for extreme temperatures from -40°C to 125°C. With 16KB flash, 2KB SRAM, and 16MHz operation, it offers robust performance in a 24-VFQFN package. Integrated BOD, POR, PWM, and WDT ensure dependable operation in automotive and industrial systems.
- Extended temperature range (-40°C to 125°C) for harsh environments.
- 16MHz AVR core provides sufficient processing power.
- 16KB flash allows for comprehensive application code.
- Small 24-VFQFN package minimizes board space.
- High reliability with built-in brown-out and watchdog protection.
Automotive Body Electronics
Handles window lift and mirror control with 125°C rating for under-dash installations.
Industrial Motor Drives
PWM outputs control IGBT gates in motor drives operating in high-temperature factory floors.
Solar Inverters
Monitors panel voltage and controls MPPT algorithms in outdoor installations exposed to heat.
HVAC Controllers
Manages compressor and fan speed in rooftop units where ambient temperatures reach 125°C.
Railway Signaling
Provides reliable control in trackside equipment subject to extreme temperature variations.
Medical Sterilization Equipment
Controls autoclave cycles with high-temperature tolerance for repeated sterilization processes.
- Q: What is the operating temperature range?
- A: -40°C to 125°C.
- Q: What is the supply voltage?
- A: 2.7V to 5.5V.
- Q: How much flash memory is available?
- A: 16KB.
- Q: What is the package type?
- A: 24-VFQFN exposed pad.
- Q: What is the core speed?
- A: 16MHz.
