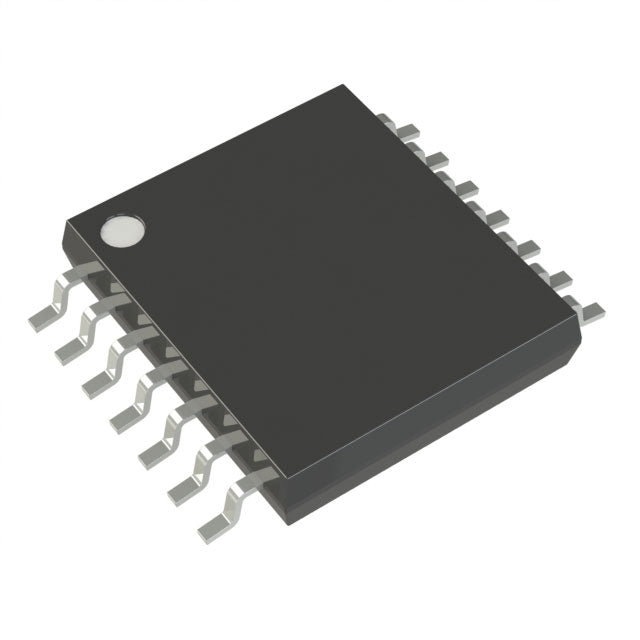

Microchip Technology ATTINY1624-XF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.96 | $0.96 |
| 15+ | $0.93 | $13.95 |
| 25+ | $0.91 | $22.75 |
| 50+ | $0.86 | $43.00 |
| 100+ | $0.76 | $76.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR® 2 |
| Packaging | Tube | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 9x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The Microchip ATTINY1624-XF is a high-performance 8-bit AVR microcontroller in a compact 14-pin TSSOP package. It operates from 1.8V to 5.5V and runs at up to 20MHz, delivering efficient processing for embedded control tasks. With 16KB of flash memory and 2KB of SRAM, it provides ample space for firmware and data. Its integrated peripherals include a 12-bit ADC, PWM, and multiple serial interfaces, making it a versatile choice for industrial, automotive, and consumer applications.
- Wide voltage range (1.8V-5.5V): Enables direct battery operation without external regulators, reducing BOM cost.
- High-temperature tolerance (125°C): Suitable for under-hood automotive and industrial ovens.
- Compact TSSOP-14 package: Saves PCB space while offering 12 GPIOs for flexible I/O.
- Low-power sleep modes: Extends battery life in duty-cycled wireless applications.
Battery-Powered IoT Sensors
The 1.8V minimum supply and low-power sleep modes enable long battery life for wireless sensor nodes.
Motor Control for Small Appliances
With PWM and a 20MHz core, it can generate precise control signals for brushless DC motors in fans and pumps.
Automotive Interior Lighting
The 125°C operating temperature and robust I/O allow direct interfacing with LED drivers in engine bays or cabin modules.
Industrial Process Monitors
Its 16KB flash and 2KB SRAM can store calibration data and run PID loops for temperature or pressure monitoring.
Portable Medical Devices
The integrated analog comparator and ADC support glucose meters or pulse oximeters with minimal external components.
Smart Home Controllers
Multiple communication interfaces (UART, SPI, I2C) enable integration with Zigbee or proprietary RF modules for lighting control.
- Q: What is the operating voltage range of the ATTINY1624-XF?
- A: The ATTINY1624-XF operates from 1.8V to 5.5V, making it suitable for battery-powered and low-voltage applications.
- Q: What is the maximum clock speed?
- A: It runs at up to 20MHz, providing a balanced performance for control and sensor applications.
- Q: What package is this MCU available in?
- A: It comes in a 14-pin TSSOP package with a 4.40mm body width, ideal for compact PCB designs.
- Q: Does it include analog peripherals?
- A: Yes, it features a 12-bit ADC, analog comparator, and other peripherals for mixed-signal processing.
- Q: What is the temperature range?
- A: It is rated for -40°C to 125°C, suitable for harsh industrial environments.
