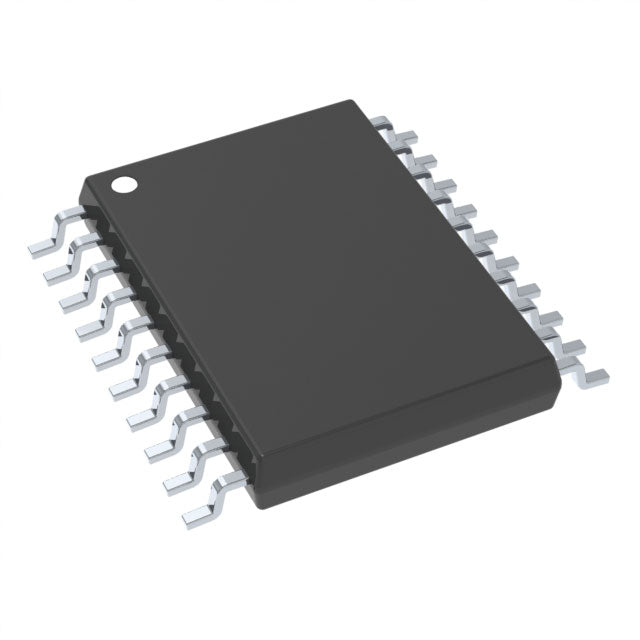

Microchip Technology ATTINY1626-XU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.92 | $0.92 |
| 15+ | $0.89 | $13.35 |
| 25+ | $0.87 | $21.75 |
| 50+ | $0.82 | $41.00 |
| 100+ | $0.73 | $73.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR® 2 |
| Packaging | Tube | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 15x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The Microchip ATTINY1626-XU is a low-power 8-bit AVR microcontroller in a 20-pin SSOP package. It features 16KB Flash, 2KB SRAM, and operates at 20MHz. With a 12-bit differential ADC with PGA, 10-bit DAC, and capacitive touch support, it provides a high level of analog integration for space-constrained, battery-powered designs.
- High Analog Integration: 12-bit ADC with PGA and 10-bit DAC reduce external components.
- Low Power with Fast Wake-up: Wake from sleep in under 10µs, enabling duty-cycled sensor nodes.
- Flexible Package Option: SSOP is easier for hand-soldering and prototyping compared to QFN.
- Wide Voltage Range: 1.8V-5.5V supports both Li-ion (3.7V) and alkaline (1.5V x2) power sources.
Industrial Process Control
The SSOP package with 0.65mm pitch is easier to route on 2-layer boards, making it ideal for PLC analog output modules using the 10-bit DAC.
Medical Device Sensors
Its 12-bit differential ADC with PGA can accurately measure biopotential signals (ECG/EMG) with proper front-end filtering.
Smart Agriculture Nodes
With low sleep current and 1.8V operation, it can run on solar-charged batteries for soil moisture monitoring.
Audio/Visual Effects
Use the 20MHz speed and PWM to generate simple sound effects or drive LED matrices in entertainment systems.
Security Systems
Its robust I/O and WDT make it reliable for door/window sensor controllers with tamper detection.
Portable Instrumentation
The SSOP package is thinner than QFN, enabling slim handheld devices like digital calipers or multimeters.
- Q: What is the difference between -XU and -MUR?
- A: The -XU is a 20-pin SSOP (5.30mm width) package, while -MUR is a QFN. Both have identical electrical specs.
- Q: What is the supply voltage?
- A: It operates from 1.8V to 5.5V, suitable for battery and 3.3V systems.
- Q: What is the maximum speed?
- A: The AVR core runs at up to 20MHz with 16KB Flash and 2KB SRAM.
- Q: Does it have a DAC?
- A: Yes, it includes a 10-bit DAC for analog output generation.
- Q: Is it suitable for touch applications?
- A: Yes, it has the Peripheral Touch Controller (PTC) with up to 16 channels.
