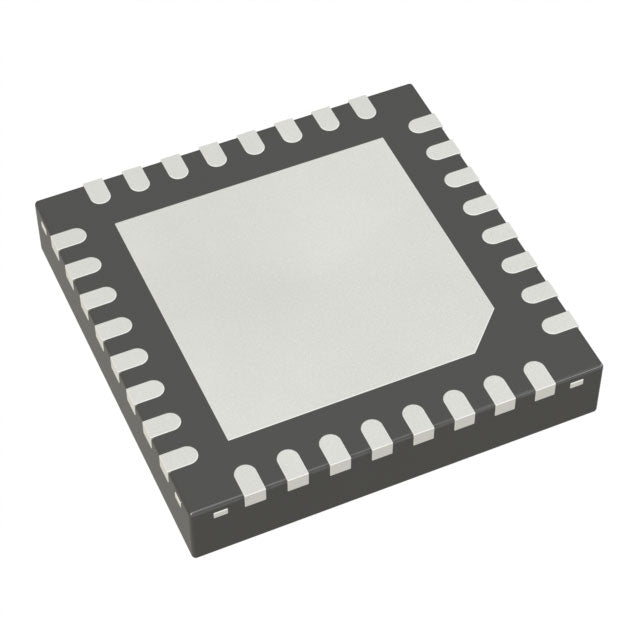

Microchip Technology ATTINY167-A15MZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART, USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 16 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 11x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The ATTINY167-A15MZ is an 8-bit AVR microcontroller from Microchip, offering 16KB flash and 512B RAM. It operates from 2.7V to 5.5V at 16MHz, with integrated brown-out reset, POR, PWM, temperature sensor, and WDT. The 32-VFQFN package with exposed pad provides excellent thermal performance for automotive and industrial applications up to 125°C.
- High-temperature operation (125°C) – reliable in engine bays and industrial ovens.
- Integrated temperature sensor – reduces BOM cost for thermal monitoring.
- Wide voltage range (2.7-5.5V) – flexible for mixed 3.3V/5V systems.
- Compact QFN package – saves PCB space in dense designs.
Automotive Actuator Control
125°C rating and 16MHz AVR core handle brushless DC motor commutation.
Industrial Temperature Monitoring
Built-in temp sensor reduces external component count in process control.
LED Lighting Drivers
PWM outputs and 5.5V operation drive high-brightness LED strings.
Power Tool Safety Systems
WDT and brown-out reset protect against voltage spikes in cordless tools.
HVAC Zone Controllers
Wide voltage range simplifies interface with 24VAC transformer supplies.
Portable Test Equipment
16KB flash allows complex calibration routines in handheld meters.
- Q: What is the max operating temperature?
- A: 125°C, suitable for high-temperature automotive environments.
- Q: Does it have a temperature sensor?
- A: Yes, integrated temp sensor for on-chip thermal monitoring.
- Q: What is the supply voltage range?
- A: 2.7V to 5.5V, compatible with 3.3V and 5V systems.
- Q: What package is used?
- A: 32-VFQFN exposed pad for compact, thermally efficient designs.
ATTINY167-A15MZ.pdf
- Q: What is the max operating temperature?
- A: 125°C, suitable for high-temperature automotive environments.
- Q: Does it have a temperature sensor?
- A: Yes, integrated temp sensor for on-chip thermal monitoring.
- Q: What is the supply voltage range?
- A: 2.7V to 5.5V, compatible with 3.3V and 5V systems.
- Q: What package is used?
- A: 32-VFQFN exposed pad for compact, thermally efficient designs.
