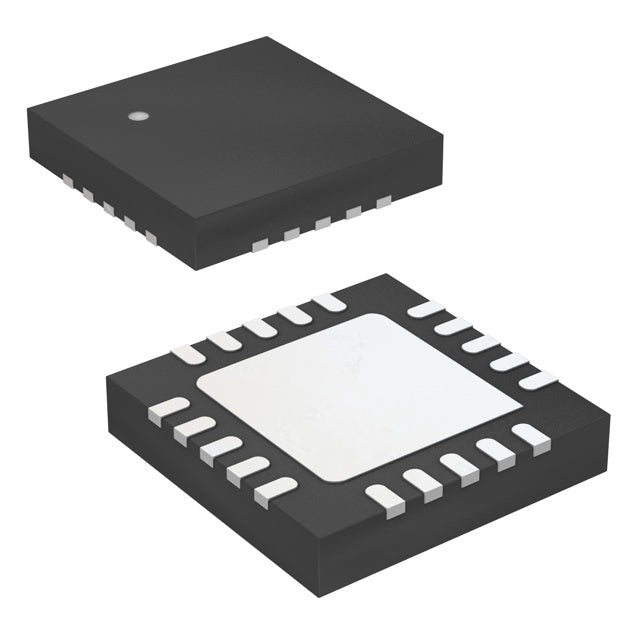

Microchip Technology ATTINY24-15MZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 2KB (1K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-QFN-EP (4x4) |
| Package / Case | 20-WFQFN Exposed Pad |
| ROHS |  |
The ATTINY24-15MZ is an 8-bit AVR microcontroller from Microchip, optimized for automotive applications. It operates at up to 16MHz with 2KB flash and 128 bytes RAM. With a 2.7V to 5.5V supply range, it includes brown-out detection, POR, PWM, and WDT in a 20-WFQFN package, rated for -40°C to 125°C.
- Automotive grade: 125°C operation meets AEC-Q100 requirements.
- Wide voltage range: 2.7V to 5.5V simplifies direct battery connection.
- Compact size: 20-WFQFN saves space in dense modules.
- Integrated safety: BOD, POR, and WDT enhance system robustness.
Automotive Lighting
5.5V tolerance and 125°C rating support LED driver control in headlamps and interior lighting modules.
Small Motor Control
PWM outputs and 16MHz speed enable sensorless commutation for window lift and mirror motors.
Sensor Nodes
Low pin count and 2KB flash suit simple temperature/pressure monitoring in engine compartments.
Battery Management
2.7V minimum and WDT provide safe state monitoring in 12V automotive battery systems.
Actuator Control
Compact WFQFN package and POR ensure reliable solenoid/relay driving in body control modules.
Immobilizer Systems
Small code footprint and robust operation fit keyless entry transponder circuits.
- Q: What is the core processor?
- A: AVR 8-bit.
- Q: What is the maximum speed?
- A: 16MHz.
- Q: How much flash memory?
- A: 2KB.
- Q: What is the supply voltage?
- A: 2.7V to 5.5V.
- Q: What package is this?
- A: 20-WFQFN exposed pad.
