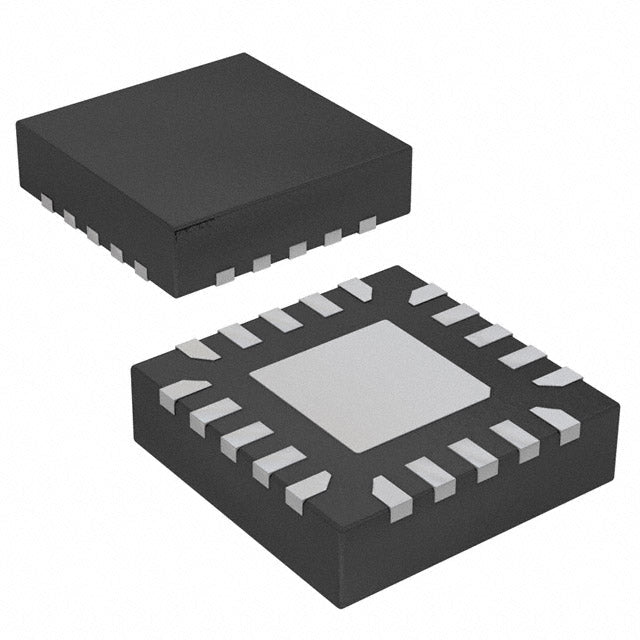

Microchip Technology ATTINY24A-MM8
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.20 | $4.20 |
| 15+ | $0.97 | $14.55 |
| 25+ | $0.95 | $23.75 |
| 50+ | $0.89 | $44.50 |
| 100+ | $0.79 | $79.00 |
| N+ | $0.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | Tray | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 12 |
| Program Memory Size | 2KB (1K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-VQFN (3x3) |
| Package / Case | 20-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATTINY24A-MM8 is an 8-bit AVR microcontroller with 2KB flash and 128 bytes of RAM. It operates at up to 20MHz and from 1.8V to 5.5V. The 20-VFQFN package includes a temperature sensor, BOD, POR, PWM, and WDT, making it a feature-rich choice for compact, high-temperature applications.
- Integrated temperature sensor: Eliminates external sensor, reducing BOM and PCB area.
- Wide voltage range: 1.8V-5.5V supports single-cell battery operation.
- High-temperature rating: 125°C enables automotive and industrial use.
- Exposed pad package: Improves heat dissipation for power-intensive tasks.
Wearable Health Monitors
The 1.8V operation and internal temperature sensor enable continuous body temperature tracking in fitness bands.
Automotive Sensor Modules
With 125°C rating and PWM, it can control pressure sensors and actuators in engine compartments.
Smart Lighting Nodes
The 20-VFQFN package and PWM allow compact, high-power LED drivers for smart bulbs.
Industrial Vibration Monitoring
Its low power and BOD ensure reliable data acquisition from accelerometers in factory equipment.
Battery Management in IoT
The 2KB flash can store calibration data for battery fuel gauges in IoT devices.
Portable Instrumentation
It can handle signal conditioning and display control in handheld multimeters or thermometers.
- Q: What is the program memory size?
- A: It has 2KB (1K x 16) flash, suitable for small embedded applications.
- Q: Does it have a temperature sensor?
- A: Yes, it includes an internal temperature sensor, along with BOD, POR, PWM, and WDT.
- Q: What package is available?
- A: It comes in a 20-VFQFN exposed pad package, offering excellent thermal performance.
- Q: What is the maximum operating temperature?
- A: It is rated for -40°C to +125°C, suitable for harsh environments.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V, supporting low-voltage battery systems.
