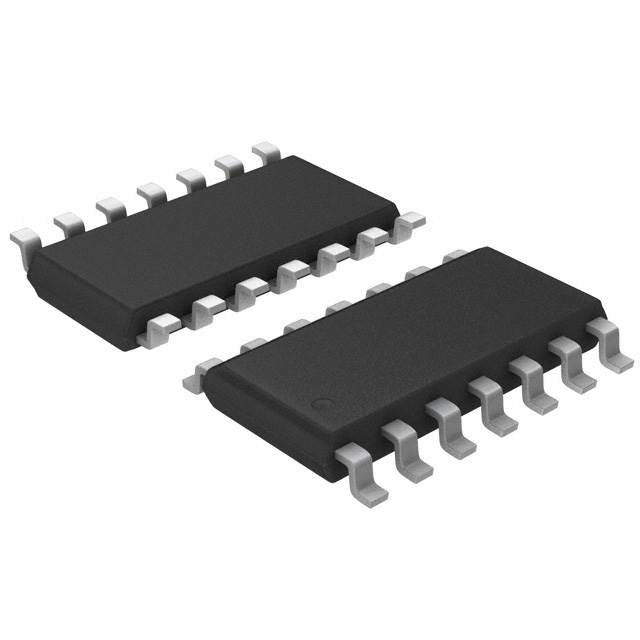

Microchip Technology ATTINY24V-10SSU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.00 | $2.00 |
| 15+ | $1.94 | $29.10 |
| 25+ | $1.90 | $47.50 |
| 50+ | $1.79 | $89.50 |
| 100+ | $1.58 | $158.00 |
| N+ | $0.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | Tube | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 12 |
| Program Memory Size | 2KB (1K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
The Microchip ATTINY24V-10SSU is a low-power 8-bit AVR microcontroller in a compact 14-pin SOIC package. It provides 2KB of flash memory and 128 bytes of SRAM, operating from 1.8V to 5.5V at speeds up to 10MHz. Integrated features include a 10-bit ADC, PWM, temperature sensor, and watchdog timer, making it a versatile choice for space-constrained, battery-operated designs.
- Ultra-low power consumption: 1.8V operation extends battery life in portable devices.
- Compact 14-SOIC package: Saves PCB space for miniaturized designs.
- Integrated temperature sensor: Eliminates external components for thermal monitoring.
- Robust protection: Brown-out reset and watchdog timer ensure reliable operation in noisy environments.
Battery-Powered Sensor Nodes
The 1.8V minimum supply voltage and low-power sleep modes enable long battery life in remote environmental or industrial sensors.
Compact Motor Control
With PWM channels and a 10MHz AVR core, it can handle simple brushless DC motor commutation in drones or small appliances.
Portable Medical Monitors
The integrated temperature sensor and ADC allow for compact, low-cost patient temperature or heart-rate monitoring devices.
Smart Lighting Systems
Its small 14-SOIC footprint and PWM outputs are ideal for LED dimming and color control in smart bulbs or architectural lighting.
Automotive Interior Controls
Operating from -40°C to 85°C, it can manage window lift or seat position switches in automotive body control modules.
Industrial Process Timers
The WDT and brown-out detection ensure reliable operation in 24/7 industrial timing and sequencing applications.
- Q: What is the operating voltage range of the ATTINY24V-10SSU?
- A: It operates from 1.8V to 5.5V, making it suitable for battery-powered and low-voltage applications.
- Q: What is the maximum clock speed?
- A: The maximum speed is 10MHz at 5.5V, with lower speeds at lower voltages.
- Q: How much program memory does it have?
- A: It features 2KB of in-system programmable flash memory (1K x 16 bits).
- Q: What package is this device available in?
- A: It comes in a 14-pin SOIC package (0.154" width).
- Q: Does it include analog and timer peripherals?
- A: Yes, it includes a 10-bit ADC, PWM, and multiple timers, along with a temperature sensor.
