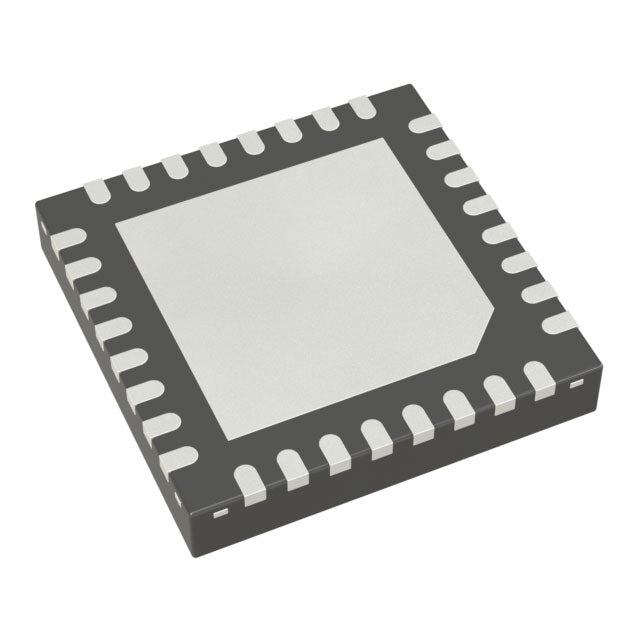

Microchip Technology ATTINY261-15MD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 2KB (1K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 11x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The ATTINY261-15MD from Microchip is a compact AVR microcontroller designed for high-temperature applications. It operates at 16MHz and offers 2KB of flash and 128 bytes of SRAM. With a supply voltage of 2.7V to 5.5V and an extended temperature range up to 150°C, it is specifically engineered for automotive and industrial environments. The 32-VFQFN package provides a small footprint with exposed pad for thermal management.
- High-Temperature Operation: Rated up to 150°C, suitable for harsh automotive environments.
- Wide Voltage Range: 2.7V to 5.5V allows direct connection to automotive battery systems.
- Compact Size: 32-VFQFN package saves space in space-constrained designs.
- Reliable Operation: Includes brown-out detect, POR, and WDT for system stability.
Automotive Sensors
With a 150°C temperature rating, it is ideal for engine bay sensors and transmission control modules.
LED Lighting Control
The PWM channels and 5V operation make it suitable for automotive lighting and interior ambient lighting.
Small Appliances
Its small footprint and low cost are perfect for simple control in toasters, coffee makers, and electric kettles.
Battery Management
Low power consumption and wide voltage range support monitoring circuits in battery packs.
Industrial Sensors
The robust temperature range and WDT ensure reliable operation in factory floor sensors.
Smart Switches
Compact size and integrated POR enable simple smart switches for home automation.
- Q: What is the core of the ATTINY261-15MD?
- A: It uses the AVR core running at 16MHz.
- Q: What is the memory size?
- A: It has 2KB of flash and 128 bytes of SRAM.
- Q: What is the supply voltage?
- A: The operating voltage is 2.7V to 5.5V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 150°C.
- Q: What package is available?
- A: It comes in a 32-VFQFN exposed pad package.
