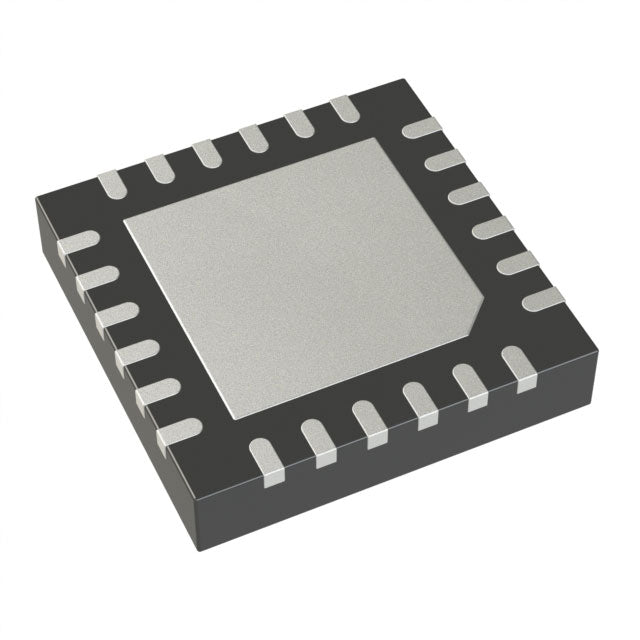

Microchip Technology ATTINY807-MF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.52 | $3.52 |
| 15+ | $0.81 | $12.15 |
| 25+ | $0.79 | $19.75 |
| 50+ | $0.75 | $37.50 |
| 100+ | $0.66 | $66.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR™ 0, Functional Safety (FuSa) |
| Packaging | Tray | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 22 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-VQFN (4x4) |
| Package / Case | 24-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATTINY807-MF is an 8-bit AVR microcontroller in a 24-VFQFN package. It runs at 16MHz with 8KB flash and 512 bytes RAM. Operating from 2.7V to 5.5V, it includes Brown-out Reset, Power-on Reset, and WDT for reliable operation in industrial and automotive applications from -40°C to 125°C.
- 24-pin VFQFN: Provides up to 22 I/O pins for complex interfacing.
- 8KB flash: Ample storage for medium-complexity firmware.
- 5.5V tolerance: Direct compatibility with legacy 5V systems.
- High-temperature rating: Suitable for under-hood automotive use.
Multi-Channel Data Acquisition
The 24-pin package provides ample I/O for reading multiple analog sensors in industrial data loggers.
Automotive Control Modules
With 5.5V operation and 125°C rating, it can directly interface with 5V automotive sensors and actuators.
Robotic Controllers
8KB flash allows storing complex motion sequences for small robots, with 512 bytes RAM for dynamic variables.
Power Tool Safety Systems
Its robust voltage range and WDT ensure safe operation in high-vibration, high-temperature power tool environments.
Smart Home Hubs
The VFQFN package and multiple I/O pins make it suitable for central control in smart lighting or security panels.
Test and Measurement Equipment
16MHz speed and 8KB flash enable precise timing for frequency counters or signal generators.
- Q: What is the core architecture?
- A: It uses the AVR core, running at up to 16MHz.
- Q: What is the voltage range?
- A: It operates from 2.7V to 5.5V.
- Q: How much flash memory is available?
- A: It has 8KB (8K x 8) of program memory.
- Q: What package is it?
- A: It comes in a 24-VFQFN exposed pad package.
- Q: Does it have PWM?
- A: No, it does not have PWM, but includes BOR, POR, and WDT.
