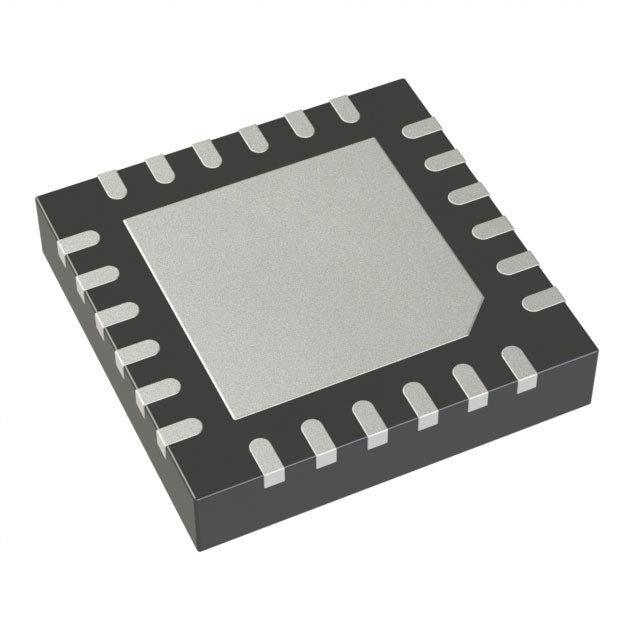

Microchip Technology ATTINY807-MN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.40 | $3.40 |
| 15+ | $0.78 | $11.70 |
| 25+ | $0.77 | $19.25 |
| 50+ | $0.72 | $36.00 |
| 100+ | $0.64 | $64.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR™ 0, Functional Safety (FuSa) |
| Packaging | Tray | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 22 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-VQFN (4x4) |
| Package / Case | 24-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATtiny807 is a mid-range AVR MCU with 8KB flash and 512B RAM, running at 20MHz. It operates from 1.8V to 5.5V and is available in a 24-VFQFN package. This device balances performance and power efficiency for a wide range of embedded control tasks.
- Large memory for its class: 8KB flash supports complex firmware.
- High-speed operation: 20MHz enables faster data processing.
- Wide voltage range: 1.8-5.5V supports both 3.3V and 5V systems.
- Extended temperature: -40°C to 105°C covers most industrial applications.
Smart Home Controllers
With 8KB flash and 20MHz speed, it can manage Zigbee or proprietary RF protocols in smart plugs.
Motor Control for Drones
The 105°C rating and 512B RAM support ESC (electronic speed controller) algorithms for small brushless motors.
Industrial Sensor Hubs
Multiple I/O pins in the 24-VFQFN package allow interfacing with temperature, pressure, and humidity sensors.
Battery Management Systems
Its 1.8V minimum voltage enables operation from a single Li-ion cell, monitoring cell voltage and temperature.
Medical Wearables
Low power and small size make it suitable for continuous glucose monitors or heart rate straps.
Agricultural Monitoring
Robust temperature range and low power consumption support solar-powered field sensors.
- Q: What is the program memory size?
- A: It has 8KB of flash memory for code storage.
- Q: What is the maximum clock speed?
- A: The CPU runs at up to 20MHz.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C.
- Q: How much RAM is available?
- A: It includes 512 bytes of SRAM.
