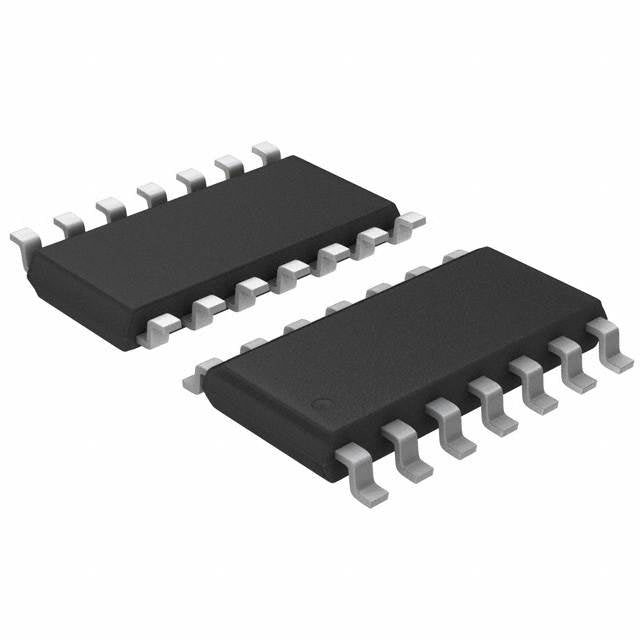

Microchip Technology ATTINY814-SSF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.78 | $0.78 |
| 15+ | $0.75 | $11.25 |
| 25+ | $0.74 | $18.50 |
| 50+ | $0.70 | $35.00 |
| 100+ | $0.62 | $62.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR™ 1, Functional Safety (FuSa) |
| Packaging | Tube | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 12 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 10x10b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
The Microchip ATTINY814-SSF is a high-temperature AVR microcontroller in a compact 14-SOIC package. It delivers 8KB Flash and 512B SRAM at speeds up to 16MHz, operating from 2.7V to 5.5V. Built-in brown-out detection, power-on reset, and watchdog timer enhance system reliability in demanding industrial and automotive environments.
- Extended temperature range (-40°C to 125°C) for harsh environments
- Wide voltage range simplifies power supply design
- Integrated BOD/POR/WDT reduces external components
- Compact SOIC-14 package saves PCB space
Industrial Sensor Node
With a wide 2.7V-5.5V supply and 125°C rating, it reliably reads analog sensors in harsh factory environments.
Battery-Powered IoT Endpoint
Low-power sleep modes and fast wake-up from WDT make it ideal for periodic sensor reporting.
Automotive Body Control Module
The extended temperature range and robust BOD/POR ensure stable operation in under-hood applications.
Portable Medical Device
Its small SOIC footprint and deterministic AVR core suit compact, safety-critical monitoring tools.
Smart Home Thermostat
8KB Flash handles control loops and user interface logic while maintaining low quiescent current.
Motor Control Feedback Loop
Fast 16MHz processing and on-chip comparators enable real-time rotor position sensing.
- Q: What is the operating voltage range of the ATTINY814-SSF?
- A: The ATTINY814-SSF operates from 2.7V to 5.5V.
- Q: What is the maximum clock speed?
- A: It runs at up to 16MHz.
- Q: How much Flash and SRAM does it have?
- A: It features 8KB Flash and 512 bytes SRAM.
- Q: What package is available?
- A: It comes in a 14-pin SOIC package.
- Q: What is the temperature range?
- A: It is rated for -40°C to 125°C.
