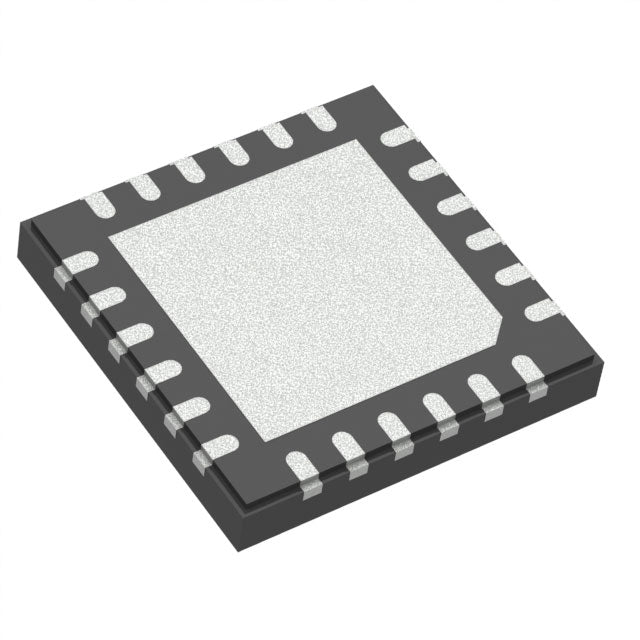

Microchip Technology ATTINY817-MBT-VAO
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR™ 1, Functional Safety (FuSa) |
| Packaging | | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 22 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 24-VQFN (4x4) |
| Package / Case | 24-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATTINY817-MBT-VAO is an 8-bit AVR microcontroller in a compact 24-VFQFN package. It operates from 2.7V to 5.5V at speeds up to 16MHz, with 8KB flash and 512B SRAM. Integrated brown-out detection, power-on reset, and watchdog timer enhance system reliability in demanding environments.
- Wide voltage range (2.7-5.5V) enables flexible power supply design.
- Compact 24-VFQFN package saves PCB space.
- Integrated BOD/POR/WDT improves system robustness.
- 16MHz AVR core delivers efficient processing for control tasks.
Industrial Sensor Node
With 8KB flash and 512B RAM, it handles sensor calibration and data logging in compact industrial monitoring systems.
Battery-Powered IoT Devices
Low-voltage operation down to 2.7V and WDT ensure reliable operation in energy-harvesting or coin-cell applications.
Automotive Interior Control
Operating up to 105°C, it suits dashboard switches and climate control interfaces requiring robust AVR performance.
Portable Medical Instruments
Brown-out detection and POR maintain data integrity in handheld diagnostic tools with fluctuating power supplies.
Smart Home Actuators
16MHz speed enables responsive control of motorized valves and blinds in home automation systems.
Embedded Security Keypads
WDT and reset features provide fail-safe operation for access control panels in commercial buildings.
- Q: What is the operating voltage range?
- A: 2.7V to 5.5V.
- Q: What is the maximum clock speed?
- A: 16MHz.
- Q: How much flash memory does it have?
- A: 8KB.
- Q: What package is available?
- A: 24-VFQFN exposed pad.
- Q: What is the temperature range?
- A: -40°C to 105°C.
