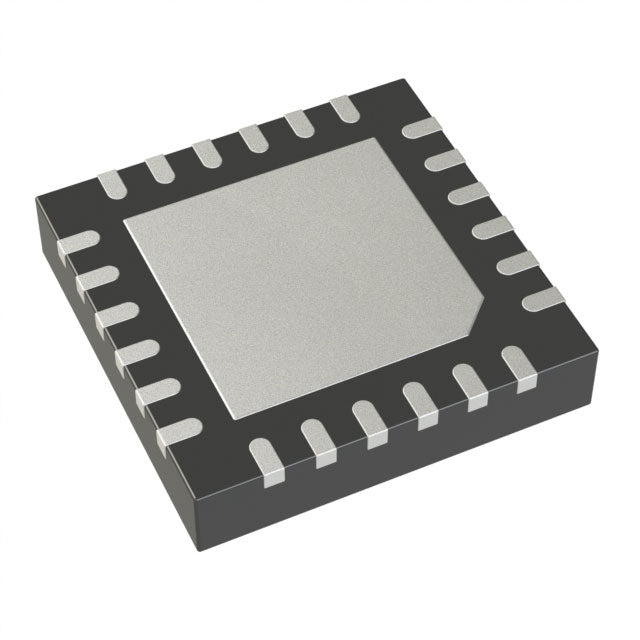

Microchip Technology ATTINY817-MN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.10 | $1.10 |
| 15+ | $1.07 | $16.05 |
| 25+ | $1.04 | $26.00 |
| 50+ | $0.99 | $49.50 |
| 100+ | $0.87 | $87.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR™ 1, Functional Safety (FuSa) |
| Packaging | Tray | Tray |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 22 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-QFN (4x4) |
| Package / Case | 24-VFQFN Exposed Pad |
| ROHS |  |
The ATTINY817-MN is a low-power 8-bit AVR microcontroller from Microchip Technology. It runs at 20 MHz and offers 8 KB of Flash and 512 bytes of RAM. Packaged in a 24-VFQFN, it supports a wide voltage range of 1.8V to 5.5V and an extended temperature range, making it a versatile choice for a variety of embedded applications.
- Wide Voltage Range: 1.8V to 5.5V simplifies power supply design.
- High Temperature Tolerance: Operates up to 105°C for demanding environments.
- Compact 24-VFQFN Package: Ideal for miniaturized designs.
- Low Power Consumption: Suitable for energy-harvesting and battery applications.
Smart Home Sensors
Low power consumption and small size make it ideal for temperature, humidity, and motion sensors.
Wearable Health Monitors
The 1.8V-5.5V range and low sleep current support compact, battery-powered health trackers.
Automotive Interior Modules
With a 105°C rating, it can handle under-dash and interior lighting control modules.
Industrial Automation Sensors
Robust I/Os and multiple communication interfaces (UART, SPI, I2C) enable industrial sensor nodes.
Consumer Appliances
Cost-effective and reliable, it is suitable for coffee makers, air purifiers, and smart plugs.
Security Systems
Its small footprint and low power are perfect for door/window sensors and keypads.
- Q: What is the core architecture?
- A: It uses the AVR 8-bit core.
- Q: What is the maximum clock speed?
- A: It operates at 20 MHz.
- Q: How much Flash memory does it have?
- A: It has 8 KB of Flash memory.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C.
