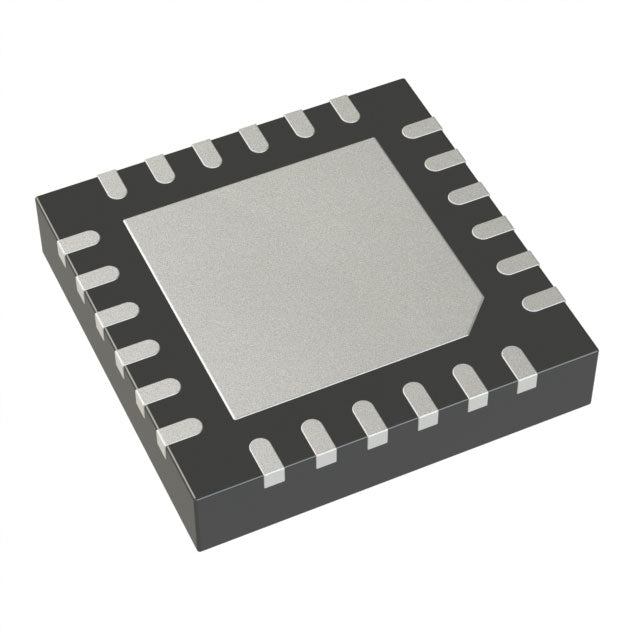

Microchip Technology ATTINY827-MF
Regular price
$1.13
Regular price
$1.19
Sale price
$1.13
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.13 | $1.13 |
| 15+ | $1.09 | $16.35 |
| 25+ | $1.07 | $26.75 |
| 50+ | $1.01 | $50.50 |
| 100+ | $0.89 | $89.00 |
| N+ | $0.18 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR® 2 |
| Packaging | Tray | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 15x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-VQFN (4x4) |
| Package / Case | 24-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATTINY827-MF is an 8-bit AVR MCU with 8KB flash and 1KB SRAM in a 24-VFQFN package. It operates from 1.8V to 5.5V at 20MHz, with integrated BOD, POR, PWM, and WDT. Designed for harsh environments from -40°C to 125°C.
- Wide voltage range: 1.8V-5.5V for versatile power designs.
- High temp: -40°C to 125°C for automotive/industrial.
- Compact VFQFN-24: space-efficient.
- 20MHz speed: balanced performance for control loops.
Automotive Sensor Interfaces
125°C rating and 5.5V tolerance allow direct connection to 12V automotive systems via regulators.
Industrial Actuators
20MHz speed and PWM enable precise control of solenoid valves in factory automation.
Smart Lighting Controllers
1.8V operation supports energy-efficient LED drivers in battery-powered emergency lights.
HVAC Zone Controllers
Robust WDT and BOD ensure reliable operation in temperature-cycling environments.
Agricultural Monitoring
Wide voltage range accommodates solar-powered systems with fluctuating supply.
Security Systems
8KB flash is enough for motion sensor algorithms with tamper detection.
- Q: What is the voltage range?
- A: 1.8V to 5.5V.
- Q: What is the max speed?
- A: 20MHz.
- Q: Memory sizes?
- A: 8KB flash, 1KB SRAM.
- Q: Package?
- A: 24-VFQFN exposed pad.
- Q: Temperature range?
- A: -40°C to 125°C.
Base Product Number ：
ATTINY827
