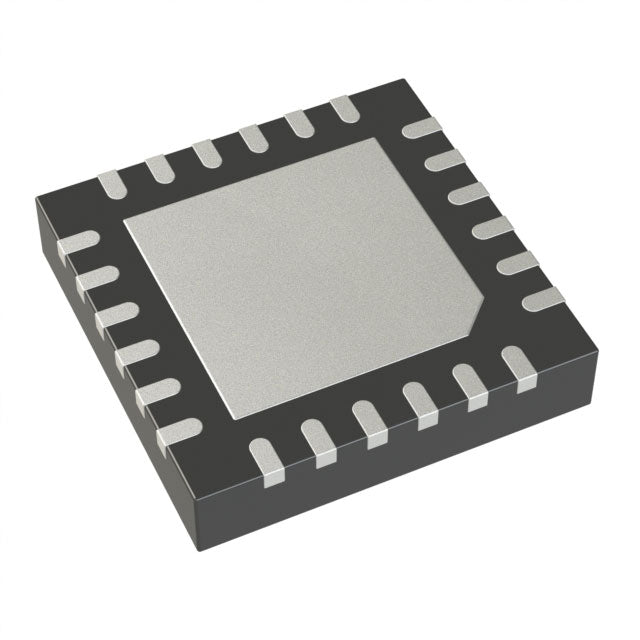

Microchip Technology ATTINY827-MUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.10 | $1.10 |
| 15+ | $1.07 | $16.05 |
| 25+ | $1.04 | $26.00 |
| 50+ | $0.99 | $49.50 |
| 100+ | $0.87 | $87.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | tinyAVR® 2 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 15x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-VQFN (4x4) |
| Package / Case | 24-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATTINY827-MUR is a low-power 8-bit AVR MCU in a 24-VFQFN package. It features 8KB Flash, 1KB SRAM, and runs at 20MHz from 1.8V to 5.5V. Integrated PWM, brown-out reset, POR, and WDT make it a flexible choice for consumer and portable applications.
- Low 1.8V operation extends battery life
- 20MHz speed for time-critical tasks
- 1KB SRAM for larger data buffers
- PWM and WDT integrated for control applications
Consumer Electronics Remote
1.8V operation allows direct CR2032 battery use, while 20MHz speed supports IR protocol encoding.
Sensor Hub for Wearables
1KB SRAM buffers multiple sensor readings; PWM drives haptic motors in fitness bands.
LED Lighting Controller
PWM channels with 1.8V-5.5V range enable dimming in portable or USB-powered lamps.
Motor Control for Toys
20MHz AVR core and WDT provide reliable commutation for small DC motors in consumer toys.
Data Logger
Low-voltage operation and 8KB Flash store calibration data for environmental logging.
Security Keypad
Brown-out reset ensures reliable key scanning in battery-operated door locks.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V.
- Q: What is the maximum speed?
- A: 20MHz with AVR core.
- Q: How much memory is available?
- A: 8KB Flash and 1KB SRAM.
- Q: Does it support PWM?
- A: Yes, it includes PWM peripherals.
- Q: What is the operating temperature?
- A: -40°C to 85°C.
