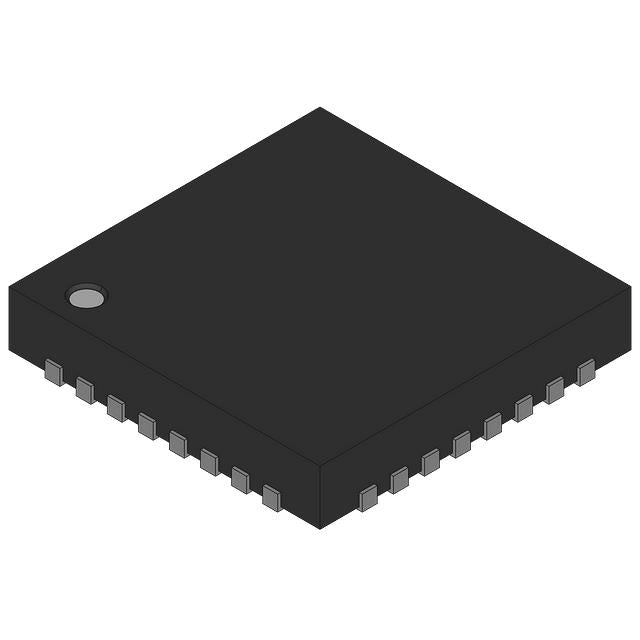

Atmel ATTINY861V-10MUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.35 | $3.35 |
| 15+ | $3.25 | $48.75 |
| 25+ | $3.18 | $79.50 |
| 50+ | $3.00 | $150.00 |
| 100+ | $2.65 | $265.00 |
| N+ | $0.53 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Atmel |
| Product Series | AVR® ATtiny |
| Packaging | Bulk | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 8KB (4K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 11x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-VQFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The ATTINY861V-10MUR is a high-performance, low-power 8-bit AVR microcontroller from Microchip Technology. It combines 8KB of flash memory, 512 bytes of SRAM, and a rich set of peripherals including a 10-bit ADC, PWM channels, and multiple timers. Operating from 1.8V to 5.5V and at speeds up to 10MHz, it is designed for efficiency and flexibility. The compact 32-VFQFN package makes it perfect for space-limited applications, while its robust feature set supports a wide range of embedded control tasks.
- Ultra-Low Power Operation: With a 1.8V minimum supply and advanced sleep modes, it extends battery life in portable devices.
- Compact Footprint: The 32-VFQFN package saves PCB space, enabling miniaturized product designs.
- Integrated Analog: The 10-bit ADC reduces external components, simplifying sensor interface designs.
- Reliable Operation: Brown-out detection and watchdog timer ensure stable performance in noisy or fluctuating power environments.
- Cost-Effective: Offers a balanced feature set at a competitive price point for high-volume applications.
Battery-Powered Sensor Nodes
The 1.8V minimum supply voltage and low-power sleep modes enable long battery life in wireless sensor networks, such as temperature or humidity monitors.
Portable Consumer Electronics
With its small 32-VFQFN package and 10MHz performance, it is ideal for handheld devices like remote controls, toys, and simple wearables.
Motor Control for Small Appliances
The built-in PWM and timers allow precise control of small DC or brushless motors in appliances like fans, pumps, and robotic toys.
LED Lighting and Dimming Systems
Use the PWM channels to create smooth dimming effects and color control in LED strips or smart lighting modules.
Automotive Interior Lighting
Operating from -40°C to 85°C, it can handle under-dash lighting or ambient light control in vehicles, with robust brown-out detection for reliability.
Industrial Process Monitors
The ADC and serial interfaces enable simple data acquisition from sensors (e.g., pressure, flow) and communication with a central controller.
- Q: What is the operating voltage range of the ATTINY861V-10MUR?
- A: It operates from 1.8V to 5.5V, making it suitable for battery-powered and low-voltage applications.
- Q: How much flash memory does this MCU have?
- A: It has 8KB of in-system programmable flash memory (4K x 16 words).
- Q: What is the maximum clock speed?
- A: The maximum speed is 10MHz at 1.8V-5.5V.
- Q: What package is available?
- A: It comes in a 32-VFQFN exposed pad package, ideal for space-constrained designs.
- Q: Does it include analog and timer peripherals?
- A: Yes, it features a 10-bit ADC, PWM, and multiple timers, along with brown-out detection and watchdog timer.
