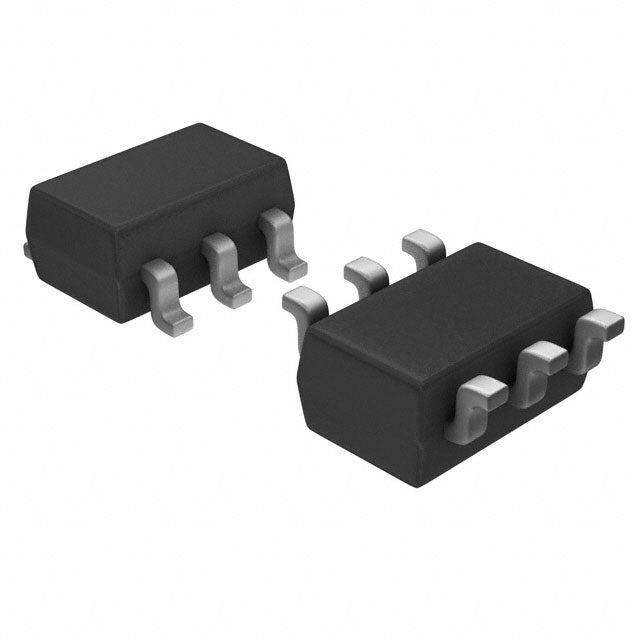

Microchip Technology ATTINY9-TS8R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.42 | $0.42 |
| 15+ | $0.40 | $6.00 |
| 25+ | $0.40 | $10.00 |
| 50+ | $0.37 | $18.50 |
| 100+ | $0.33 | $33.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | - |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 4 |
| Program Memory Size | 1KB (512 x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Package / Case | SOT-23-6 |
| ROHS |  |
The Microchip ATTINY9-TS8R is an 8-bit AVR microcontroller in a space-saving SOT-23-6 package. It operates from 1.8V to 5.5V and runs at up to 10MHz. With 1KB of flash memory and 32 bytes of SRAM, it is designed for simple control tasks. Integrated features include Power-on Reset, Watchdog Timer, and PWM. Its extended temperature range of -40°C to 125°C makes it suitable for demanding environments.
- Ultra-compact SOT-23-6 package: Enables miniaturized PCB designs for space-constrained products.
- Wide voltage range (1.8V-5.5V): Simplifies power supply design and supports direct battery operation.
- High-temperature tolerance up to 125°C: Reliable in automotive and industrial environments.
- Integrated WDT and POR: Enhances system reliability without external components.
Battery-Powered Sensor Nodes
The 1.8V minimum supply voltage and low-power AVR core allow the ATTINY9-TS8R to run directly from a single coin cell or two AA batteries, extending battery life in remote sensor applications.
Miniature LED Lighting Controllers
With built-in PWM channels and a tiny SOT-23-6 footprint, this MCU can drive LED brightness or color patterns in compact lighting modules where PCB area is at a premium.
Smart Disposable Medical Devices
The wide operating temperature range (-40°C to 125°C) and small size make it suitable for single-use diagnostic tools that require reliable operation in varying environmental conditions.
Automotive Interior Ambient Lighting
Its high-temperature tolerance and robust POR/WDT features ensure dependable operation in automotive cabin modules, such as ambient light strips or switch controllers.
Portable Consumer Electronics Accessories
From e-cigarette controllers to small wearable gadgets, the 1KB flash and 32B RAM are sufficient for simple state machines and timing functions, while the SOT-23-6 package fits into slim enclosures.
Industrial Miniature Actuator Control
The integrated WDT and brown-out protection help maintain system integrity in noisy industrial environments, controlling small motors or solenoids with PWM signals.
- Q: What is the operating voltage range of the ATTINY9-TS8R?
- A: The ATTINY9-TS8R operates from 1.8V to 5.5V, making it suitable for battery-powered and low-voltage applications.
- Q: How much flash memory does this MCU have?
- A: It features 1KB of flash program memory (512 x 16 bits) and 32 bytes of SRAM.
- Q: What package is the ATTINY9-TS8R available in?
- A: It comes in a compact SOT-23-6 package, ideal for space-constrained designs.
- Q: Does it include a watchdog timer?
- A: Yes, it includes a Watchdog Timer (WDT) along with Power-on Reset (POR) and PWM capabilities.
- Q: What is the maximum clock speed?
- A: The maximum operating frequency is 10MHz.
