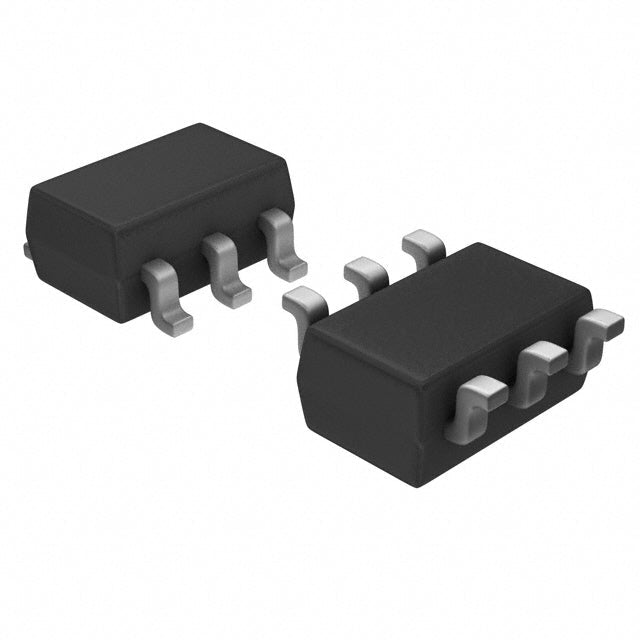

Microchip Technology ATTINY9-TSHR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.42 | $0.42 |
| 15+ | $0.40 | $6.00 |
| 25+ | $0.40 | $10.00 |
| 50+ | $0.37 | $18.50 |
| 100+ | $0.33 | $33.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 12MHz |
| Connectivity | - |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 4 |
| Program Memory Size | 1KB (512 x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Package / Case | SOT-23-6 |
| ROHS |  |
The ATTINY9-TSHR is an 8-bit AVR microcontroller from Microchip Technology, offering 1KB Flash and 32 bytes SRAM in a SOT-23-6 package. It operates from 1.8V to 5.5V and runs at up to 12MHz. This MCU is designed for applications needing more code space than the ATTINY5 while maintaining a minimal footprint.
- 1KB Flash – provides more code space for complex routines.
- SOT-23-6 package – saves PCB area without sacrificing functionality.
- Wide voltage range – simplifies power design.
- Low-power AVR core – ideal for battery-operated devices.
Smart Disposable Medical Sensors
1KB Flash allows storing calibration data and running simple algorithms in single-use devices.
Miniature Motor Drivers
PWM output controls small vibration motors in haptic feedback modules.
Environmental Loggers
Low power and small size enable placement in tight enclosures for temperature/humidity logging.
Security Tokens
Compact package fits into USB dongles or key fobs for authentication.
Automotive Interior Lighting
PWM dimming for ambient LED strips in vehicles with 12V-to-5V regulation.
Industrial Sensor Calibration
Stores trim values and communicates via simple serial protocols.
- Q: What is the Flash memory size?
- A: 1KB (512 x 16-bit words), double the ATTINY5.
- Q: What is the operating voltage?
- A: 1.8V to 5.5V, flexible for various power sources.
- Q: What is the maximum speed?
- A: 12MHz, adequate for real-time control.
- Q: What package is available?
- A: SOT-23-6, ideal for high-density boards.
- Q: Does it include a watchdog timer?
- A: Yes, plus POR and PWM.
