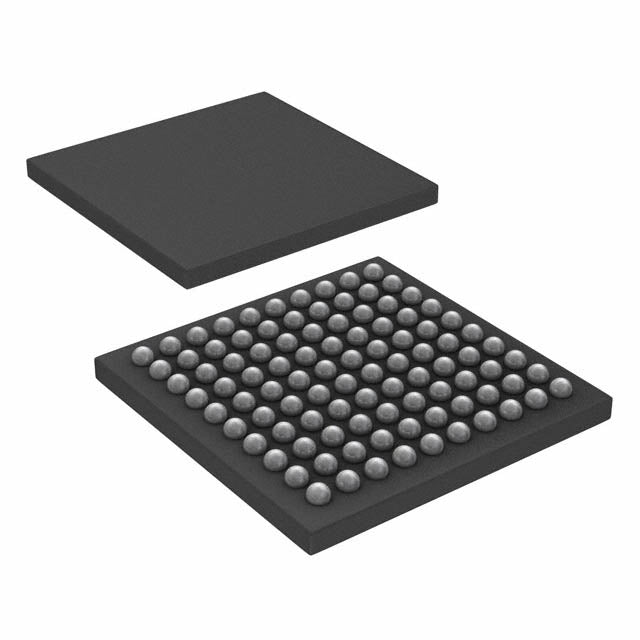

Microchip Technology ATXMEGA128A1-C7U
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.04 | $9.04 |
| 15+ | $8.76 | $131.40 |
| 25+ | $8.57 | $214.25 |
| 50+ | $8.09 | $404.50 |
| 100+ | $7.14 | $714.00 |
| N+ | $1.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® A1 |
| Packaging | Tray | |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | EBI/EMI, I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 78 |
| Program Memory Size | 128KB (64K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 4x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-VFBGA (7x7) |
| Package / Case | 100-VFBGA |
| ROHS |  |
The ATXMEGA128A1-C7U from Microchip is a high-performance 8/16-bit AVR microcontroller with advanced DMA capabilities. It operates from 1.6V to 3.6V, making it suitable for low-power embedded systems. The 128KB flash and 8KB RAM provide generous resources for complex applications. Its 100-VFBGA package offers high pin density for space-constrained designs. Integrated brown-out detection, POR, and WDT enhance system robustness.
- DMA controller offloads data movement, freeing CPU for algorithm execution.
- Ultra-low 1.6V operation enables direct battery-powered designs.
- 32MHz AVR core provides high throughput for 8-bit class.
- 100-ball BGA enables compact PCB layouts with many I/O.
High-Performance Data Acquisition
The DMA controller and 32MHz AVR core enable continuous ADC sampling without CPU intervention, ideal for vibration analysis.
Portable Instrumentation
Low 1.6V operation extends battery life in handheld meters while maintaining 128KB code space.
Audio Processing
DMA and PWM channels support simple audio playback or tone generation for alert systems.
Industrial Networking Nodes
The 100-ball BGA provides ample I/O for fieldbus interfaces like RS-485 or CAN.
Smart Sensors
Brown-out detection and WDT ensure reliable operation in remote monitoring stations.
Motor Control
Fast PWM and 32MHz processing handle sensorless BLDC control algorithms.
- Q: What is the maximum clock speed of the ATXMEGA128A1-C7U?
- A: It runs at up to 32MHz.
- Q: What is the program memory size?
- A: It has 128KB of flash, organized as 64K x 16 bits.
- Q: Does it support DMA?
- A: Yes, it includes a DMA controller for peripheral data transfers.
- Q: What is the supply voltage range?
- A: It operates from 1.6V to 3.6V.
- Q: What package is this device available in?
- A: It comes in a 100-ball VFBGA package.
